ON SEMICONDUCTOR CAT25256LI-G. 芯片, 存储器, EEPROM, 256Kb, 串行口, 10MHZ DIP-8
The is a 256kB serial CMOS Electrically Erasable Programmable Read-Only Memory EEPROM with 25256E-marking. It is organized as 32K x 8-bit. This features a 64-byte page write buffer and supports the serial peripheral interface SPI protocol. The device is enabled through a chip select CS input. In addition, the required bus signals are clock input SCK, data input SI and data output SO lines. The HOLD input may be used to pause any serial communication with the CAT25256 device. The device features software and hardware write protection, including partial as well as full array protection.
频率 5 MHz
电源电压DC 1.80V min
无卤素状态 Halogen Free
供电电流 4 mA
针脚数 8
时钟频率 10 MHz
内存容量 32000 B
存取时间Max 75 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Through Hole
引脚数 8

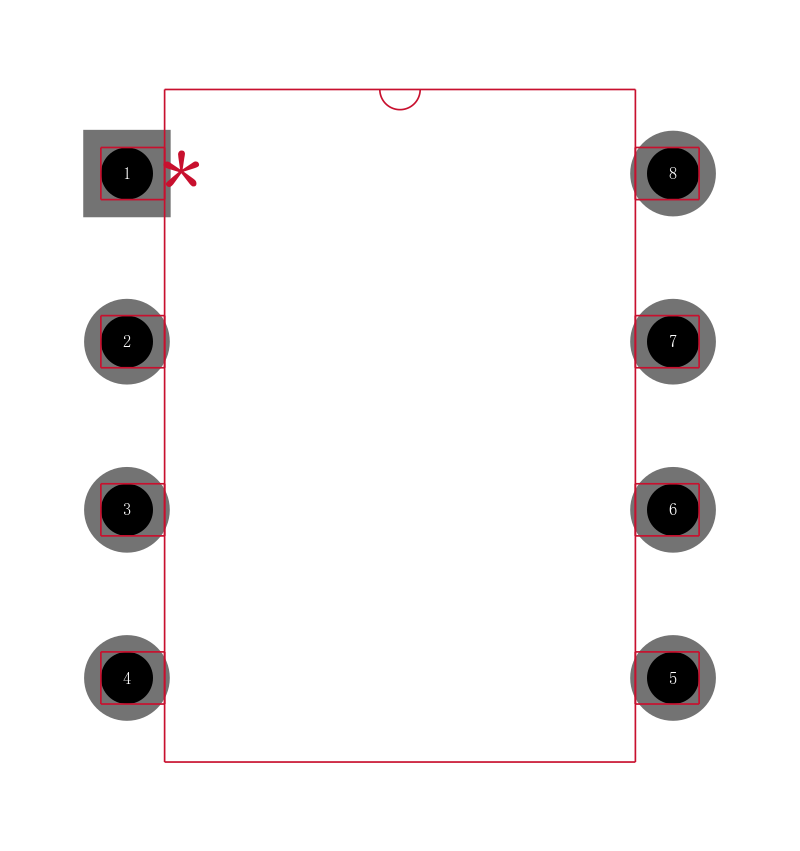

封装 DIP-8
封装 DIP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Each
制造应用 Industrial, 通信与网络, Industrial Systems, 工业, Computer Systems, Automotive Systems, Computers & Computer Peripherals, Communications Systems, Consumer Electronics, Consumer Systems, 消费电子产品, Communications & Networking, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CAT25256LI-G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
25LC256-I/P 微芯 | 功能相似 | CAT25256LI-G和25LC256-I/P的区别 |
25AA256-I/P 微芯 | 功能相似 | CAT25256LI-G和25AA256-I/P的区别 |
AT25256A-10PQ-2.7 爱特美尔 | 功能相似 | CAT25256LI-G和AT25256A-10PQ-2.7的区别 |
