CAT93C56LI-G

ON SEMICONDUCTOR  CAT93C56LI-G  芯片, 存储器, EEPROM, 2Kb, 串行口, 2MHZ, DIP-8

The CAT93C56/57 is a 2-kb CMOS Serial EEPROM device which is organized as either 128 registers of 16 bits ORG pin at V or 256 registers of 8 bits ORG pin at GND. Each register can be written or read serially by using the DI or DO pin. The CAT93C56/57 features sequential read and self-timed internal write with auto-clear. On-chip Power-On Reset circuitry protects the internal logic against powering up in the wrong state.

Features

---

 |

.

High speed operation: 2.0 MHz

.

1.8 V to 5.5 V supply voltage range

.

Selectable x8 or x16 memory organization

.

Sequential read

.

Software Write Protection

.

Power-up Inadvertant Write Protection

.

Low Power CMOS Technology

.

1,000,000 Program/Erase Cycles

.

100 Year Data Retention

.

Industrial and Extended Temperature Ranges

.

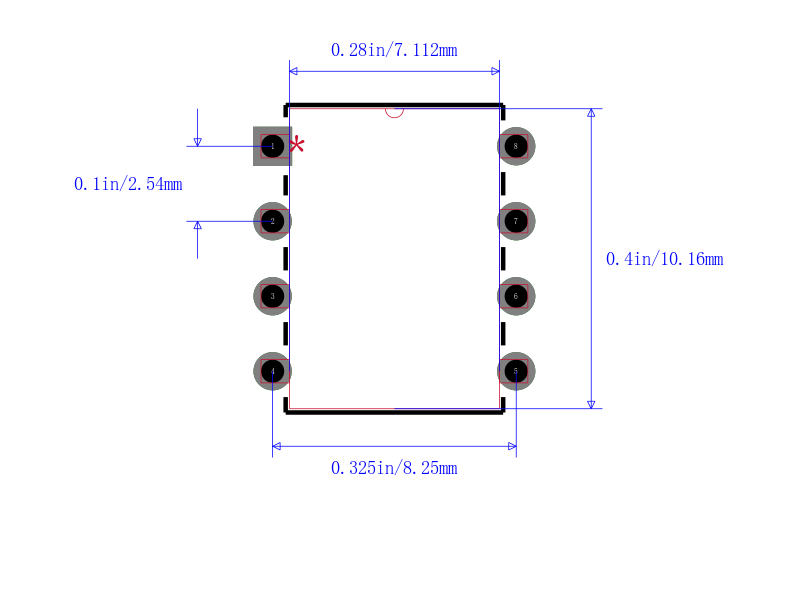

8-pin PDIP, SOIC, TSSOP and 8-pad TDFN Packages

.

These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS

Compliant
