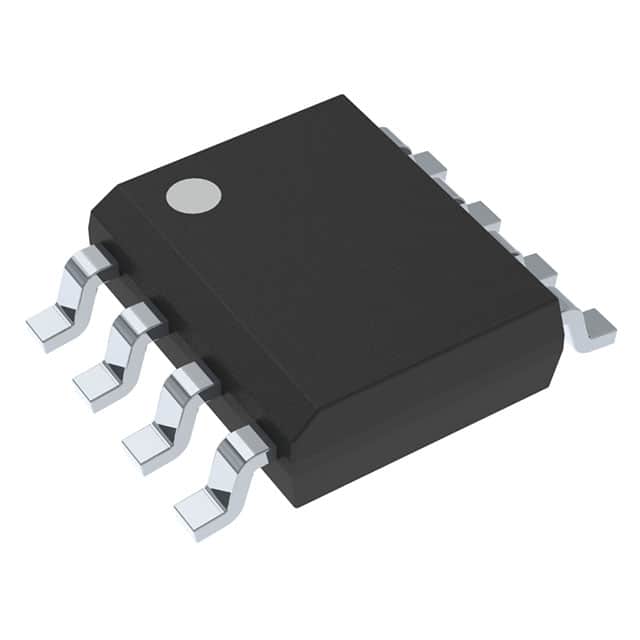

ON SEMICONDUCTOR CAT25256VI-G. 芯片, 存储器, EEPROM, 256Kb, 串行口 10MHZ SOIC-8
The CAT25256 is a 256-kb Serial CMOS EEPROM device internally organized as 32kx8 bits. This features a 64-byte page write buffer and supports the Serial Peripheral Interface SPI protocol. The device is enabled through a Chip Select input. In addition, the required bus signals are clock input SCK, data input SI and data output SO lines. The input may be used to pause any serial communication with the CAT25256 device. The device features software and hardware write protection, including partial as well as full array protection.On-Chip ECC Error Correction Code makes the device suitable for high reliability applications.Available for New Product Rev. E.
Features
---
|
\- Protect 1/4, 1/2 or Entire EEPROM Array
频率 5 MHz
电源电压DC 1.80V min
工作电压 1.8V ~ 5.5V
无卤素状态 Halogen Free
供电电流 4 mA
针脚数 8
时钟频率 5 MHz
存取时间 75 ns
内存容量 32000 B
存取时间Max 75 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
制造应用 Computer Systems, Communications Systems, Automotive Systems, Consumer Systems, Industrial Systems
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CAT25256VI-G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
CAT25256VI-GT3 安森美 | 类似代替 | CAT25256VI-G和CAT25256VI-GT3的区别 |
M95256-WMN6TP 意法半导体 | 功能相似 | CAT25256VI-G和M95256-WMN6TP的区别 |
M95256-WMN6P 意法半导体 | 功能相似 | CAT25256VI-G和M95256-WMN6P的区别 |
