Fuse Chip Very Fast Acting 1.5A 125V SMD Solder Pad 1206 Ceramic T/R
* Fast Acting * Small size, 1206 SMD * Current rating from 250mA to 7A * Wide operating temperature range from -55°C to 125°C * Tape and Reel for automatic SMD placement * Compatible with reflow and wave soldering * RoHS6 compliant * Halogen Free * Leadfree
艾睿:

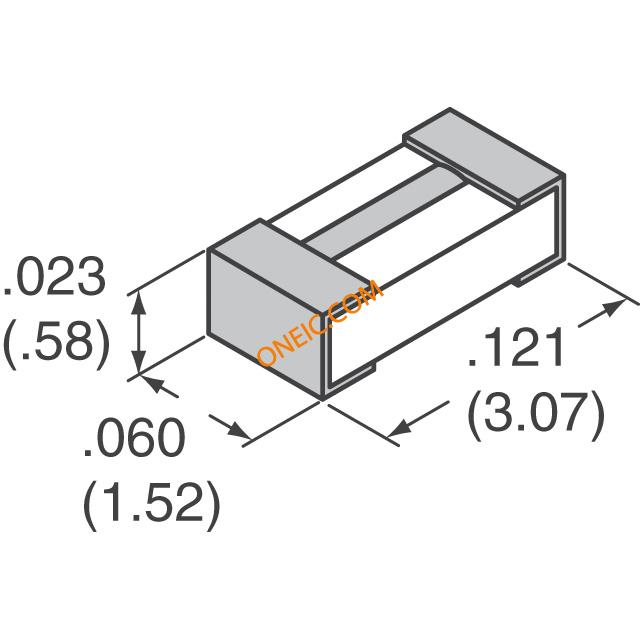

Be protected by adding a chip C1Q 1.5 fuse developed by Bel Fuse. This device has a maximum power dissipation of 0.28 W. This device has a current rating of 1.5. Its maximum power dissipation is 0.28 W. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The C1Q 1.5 fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 63 VDC. Its fuse is made from ceramic. This product is 3.07 mm long, 0.58 mm tall and 1.52 mm deep.
安富利:
Fuse Chip 1.5A 125V Very Fast 2-Pin Solder Pad Surface Mount T/R
Chip1Stop:
Fuse Chip Very Fast Acting 1.5A 125V SMD Solder Pad 3.2 x 1.6 mm Ceramic T/R
Verical:
Fuse Chip Very Fast Acting 1.5A 125V SMD Solder Pad 1206 Ceramic T/R CE/CSA/cULus
额定电压DC 63 V
额定电压AC 125 V
额定电流 1.5 A
耗散功率 0.28 W
电阻 0.075 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 0.28 W
额定电压 125 V
额定电压DC Max 63 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.58 mm
高度 0.58 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 125℃
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
