C300KR10E

OHMITE  C300KR10E  功率电阻, 0.1欧姆 10% 300W

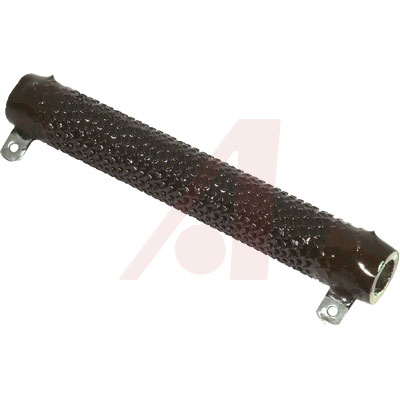

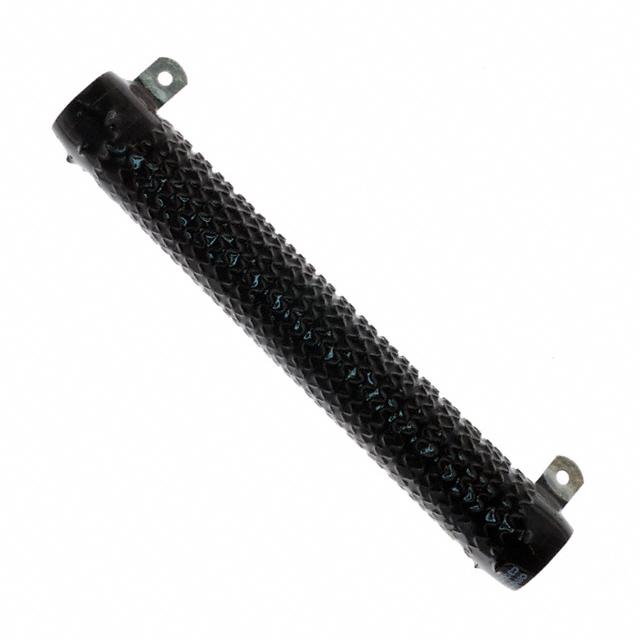

280 Series — Fixed Vitreous Enamel High Power Corrib® Resistors

Corrib® resistors are ideal for applications involving high currents at very low resistance values – as low as 0.1 ohm at 300 watts. These large, heavy-duty resistors are designed to withstand frequent start-stop cycles characteristic of motor starting, dynamic breaking and other similar applications. They are manufactured with corrugated resistive wire. Ribbed construction aids in rapid cooling. To accelerate cooling, the wire is securely fused to the ceramic core by a protective vitreous enamel coating to improve durability. Corrib® resistors are hollow-core units, which can be securely fastened to chassis surfaces with the same thru bolts and brackets used with the 210/270 series resistors.

.

*Tolerance:** ±10%. **Length: **8.5". **Outer Diameter: **1.125". **Overall Height:** 1.895".
