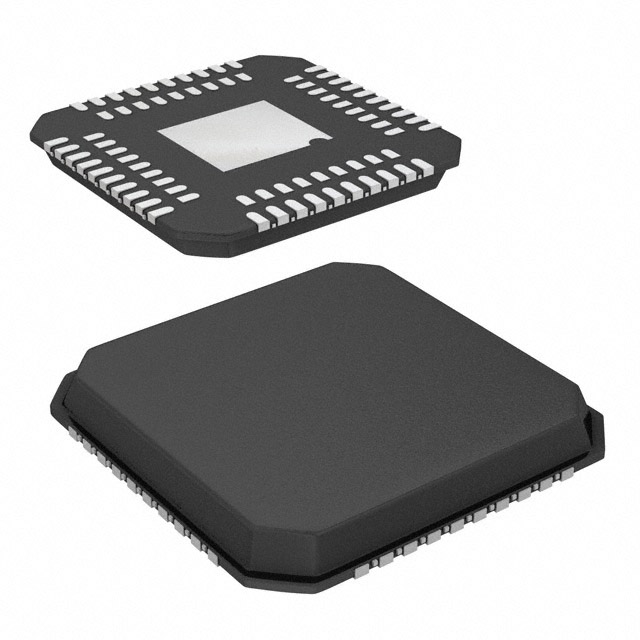

TEXAS INSTRUMENTS CC2564BRVMT 芯片, 射频收发器, 2.4-2.48GHZ, VQFN-76
The is a complete Bluetooth BR/EDR/LE HCI solution that reduces design effort and enables fast time to market. Based on seventh generation Bluetooth core, the CC2564BRVMT device provides a product proven solution that supports Bluetooth 4.0 dual mode BR/EDR/LE protocols. When coupled with a microcontroller unit MCU, the HCI device provides best in class RF performance. With transmit power and receive sensitivity, this solution provides a best in class range of about 2x, compared to other BLE only solutions.
ESD sensitive device, take proper precaution while handling the device.
频率 2.4 GHz
电源电压DC 2.20V min
针脚数 76
数据速率 4.00 Mbps
输出功率 12 dBm
待机电流 40.0 µA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.2V ~ 4.8V
电源电压Max 4.8 V
电源电压Min 2.2 V
安装方式 Surface Mount
引脚数 76
封装 VQFN-76
封装 VQFN-76
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 5A992.c
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC2564BRVMT TI 德州仪器 | 当前型号 | 当前型号 |
CC2564RVMR 德州仪器 | 完全替代 | CC2564BRVMT和CC2564RVMR的区别 |
CC2564RVMT 德州仪器 | 完全替代 | CC2564BRVMT和CC2564RVMT的区别 |
CC2564BRVMR 德州仪器 | 完全替代 | CC2564BRVMT和CC2564BRVMR的区别 |
