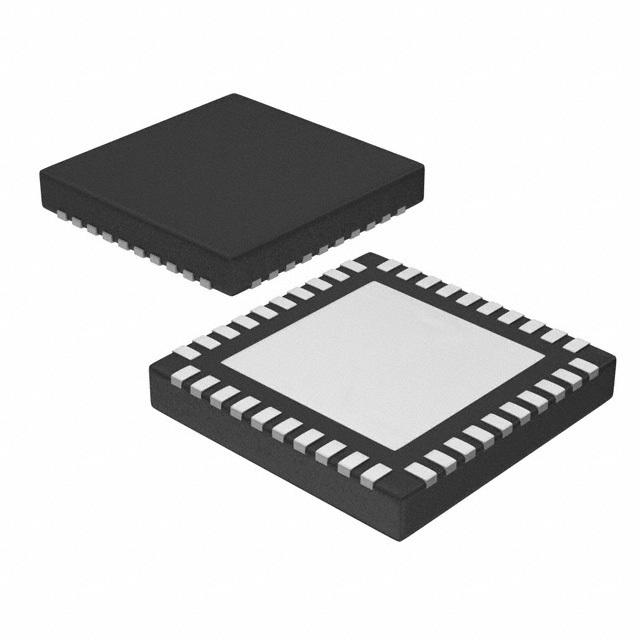

TEXAS INSTRUMENTS CC2541F128RHAT 芯片, 系统芯片, 蓝牙, 2.4GHZ, 40VQFN
The is a power-optimized true System-on-chip SoC Solution for both Bluetooth low energy and proprietary 2.4GHz applications. It enables robust network nodes to be. The CC2541 combines the excellent performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8kB RAM and many other powerful supporting features and peripherals. The SoC is highly suited for systems where ultralow-power consumption is required. This is specified by various operating modes. Short transition times between operating modes further enable low power consumption. The CC2541 is pin-compatible with the CC2533 RF4CE-optimized IEEE 802.15.4 SoC and comes in 128kB flash memory.
ESD sensitive device, take proper precaution while handling the device.
频率 2.4 GHz
电源电压DC 2.00V min
针脚数 40
时钟频率 32.0 MHz
RAM大小 8192 B
数据速率 2.00 Mbps
FLASH内存容量 131334144 B
输出功率 0 dBm
UART数量 1
增益 64.0 dB
待机电流 500 nA
天线接线 Differential
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 40
封装 VQFN-40
封装 VQFN-40
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 消费电子产品, 射频通信, 无线, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 5A992.c
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC2541F128RHAT TI 德州仪器 | 当前型号 | 当前型号 |
CC2541F128RHAR 德州仪器 | 完全替代 | CC2541F128RHAT和CC2541F128RHAR的区别 |
