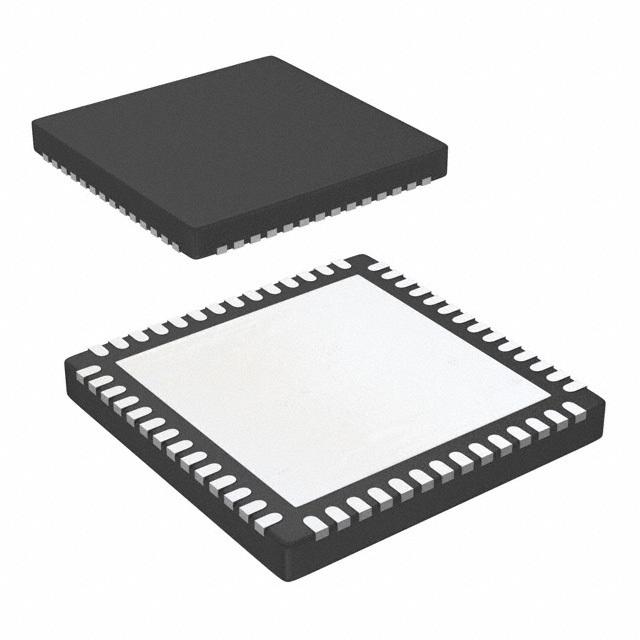

TEXAS INSTRUMENTS CC2538SF53RTQT 芯片, 射频收发器, ZIGBEE, QFN-56
The is a powerful ideal wireless microcontroller System-on-chip SoC for 2.4GHz IEEE 802.15.4-2006 and ZigBee applications. The device combines a powerful ARM Cortex-M3-based MCU system with up to 32kB on-chip RAM and up to 512kB on-chip flash with a robust IEEE 802.15.4 radio. This enables the device to handle complex network stacks with security, demanding applications and over-the-air download. Thirty-two GPIOs and serial peripherals enable simple connections to the rest of the board. The powerful hardware security accelerators enable quick and efficient authentication and encryption while leaving the CPU free to handle application tasks. The multiple low-power modes with retention enable quick start-up from sleep and minimum energy spent to perform periodic tasks. For a smooth development, the CC2538 includes a powerful debugging system and a comprehensive driver library.
ESD sensitive device, take proper precaution while handling the device.
频率 2.4 GHz
电源电压DC 2.00V min
通道数 8
针脚数 56
时钟频率 24.0 MHz
RAM大小 32 KB
数据速率 250 kbps
FLASH内存容量 512 KB
输出功率 7 dBm
待机电流 500 nA
天线接线 Differential
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 56
封装 QFN-56
长度 8.15 mm
宽度 8.15 mm
高度 0.95 mm
封装 QFN-56
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 照明, 建筑自动化
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 5A992.c
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC2538SF53RTQT TI 德州仪器 | 当前型号 | 当前型号 |
CC2538SF53RTQR 德州仪器 | 完全替代 | CC2538SF53RTQT和CC2538SF53RTQR的区别 |
MAX7037EGL+ 美信 | 功能相似 | CC2538SF53RTQT和MAX7037EGL+的区别 |
