CC2420RTC

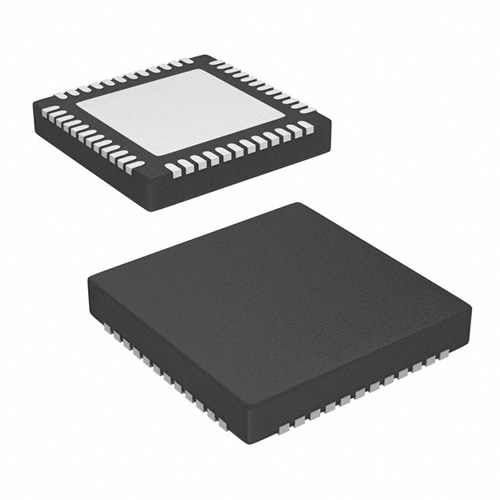

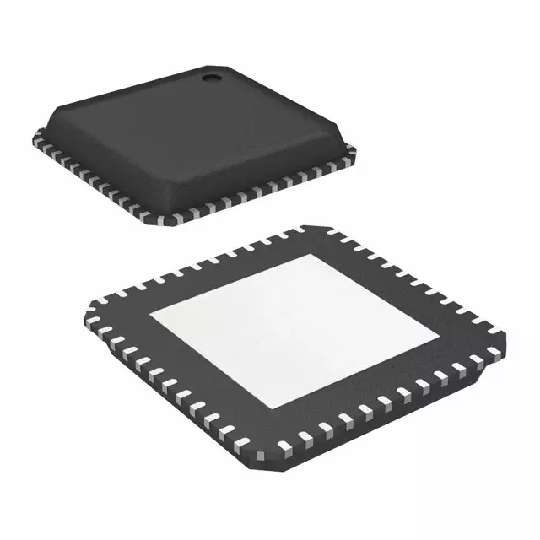

Single-Chip 2.4GHz IEEE 802.15.4 Compliant and ZigBee Ready RF Transceiver 48-VQFN -40℃ to 85℃

* True single-chip 2.4 GHz IEEE 802.15.4 compliant RF transceiver with baseband modem and MAC support * DSSS baseband modem with 2 MChips/s and 250 kbps effective data rate. * Suitable for both RFD and FFD operation * Low current consumption RX: 18.8 mA, TX: 17.4 mA * Low supply voltage 2.1 – 3.6 V with integrated voltage regulator * Low supply voltage 1.6 – 2.0 V with external voltage regulator * Programmable output power * No external RF switch / filter needed * I/Q low-IF receiver * I/Q direct upconversion transmitter * Very few external components * 128RX + 128TX byte data buffering * Digital RSSI / LQI support * Hardware MAC encryption AES-128 * Battery monitor * QLP-48 package, 7×7 mm * Complies with ETSI EN 300 328, EN 300 440 class 2, FCC CFR-47 part 15 and ARIB STD-T66 * Powerful and flexible development tools available
