支持USB的系统级芯片解决方案的2.4GHz IEEE 802.15.4和ZigBee应用 A USB-Enabled System-On-Chip Solution for 2.4-GHz IEEE 802.15.4 and ZigBee Applications
The CC2531 is a USB enabled true system-on-chip SoC solution for IEEE 802.15.4, ZigBee and RF4CE applications. It enables USB dongles or USB upgradable network nodes to be built with low total bill-of-material costs. The CC2531 combines the performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful features. The CC2531 has various operating modes, making it suited for systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption. Source code for USB HID and CDC libraries and examples are downloadable from the CC2531 product page on www.ti.com.
Combined with the industry-leading and golden-unit-status ZigBee protocol stack Z-Stack from Texas Instruments, the CC2531 provides a robust and complete ZigBee USB dongle or firmware upgradable network node.
Combined with the golden-unit-status Remo stack from Texas Instruments, the CC2531 provides a robust ZigBee RF4CE remote-control target for USB dongle or TV/STB implementations.
频率 2.4 GHz
电源电压DC 2.00V min
通道数 8
时钟频率 24.0 MHz
RAM大小 8 KB
数据速率 250 kbps
FLASH内存容量 256 KB
输出功率 4.5 dBm
UART数量 1
待机电流 1.00 µA
天线接线 Differential
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 40

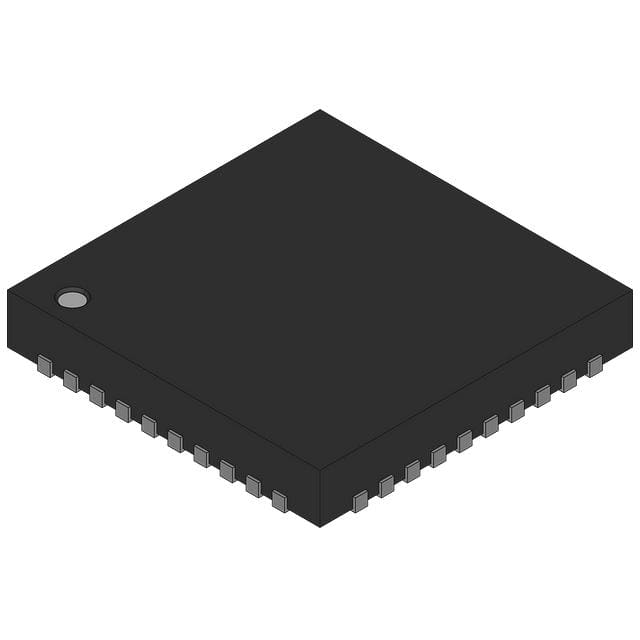

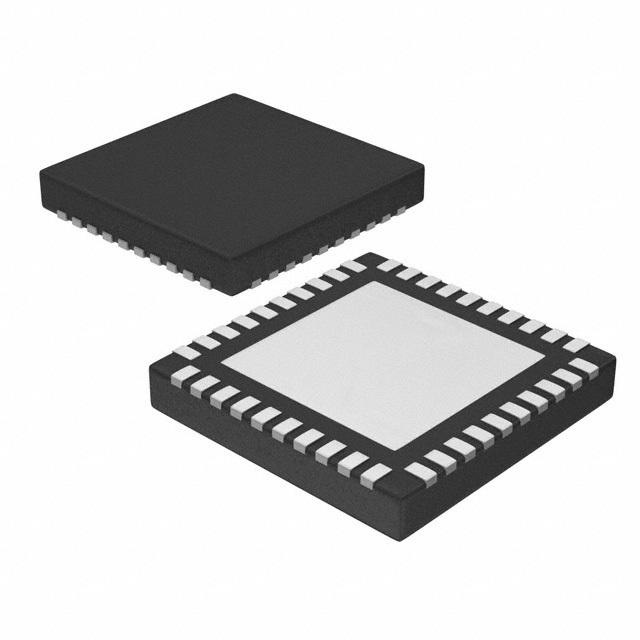

封装 VQFN-40
封装 VQFN-40
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC2531F128RHAR TI 德州仪器 | 当前型号 | 当前型号 |
CC2531F256RHAT 德州仪器 | 完全替代 | CC2531F128RHAR和CC2531F256RHAT的区别 |
CC2531F256RHAR 德州仪器 | 完全替代 | CC2531F128RHAR和CC2531F256RHAR的区别 |
CC2531F128RHAT 德州仪器 | 完全替代 | CC2531F128RHAR和CC2531F128RHAT的区别 |
