CAT93C46YI-G

ON SEMICONDUCTOR  CAT93C46YI-G  芯片, 存储器, EEPROM, 1Kb, 串行口, 2MHZ, TSSOP-8

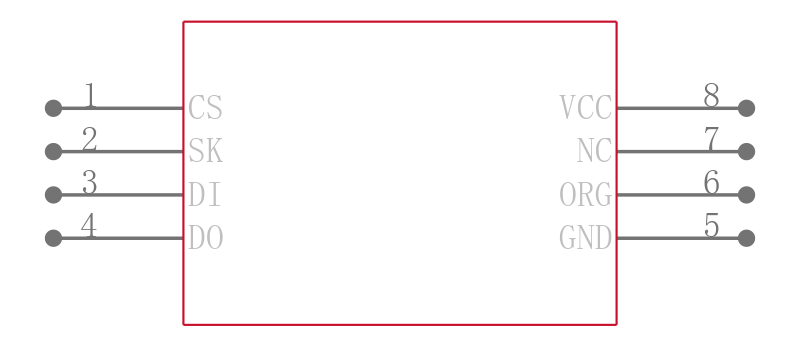

The CAT93C46 is a 1-kb Serial EEPROM memory device which is configured as either 64 registers of 16 bits ORG pin at V or 128 registers of 8 bits ORG pin at GND. Each register can be written or read serially by using the DI or DO pin. The CAT93C46 features a self-timed internal write with auto-clear. On-chip Power-On Reset circuit protects the internal logic against powering up in the wrong state.

Features

---

 |

.

High Speed Operation: 2 MHz

.

1.8 V to 5.5 V Supply Voltage Range

.

Selectable x8 or x16 Memory Organization

.

Self-Timed Write Cycle with Auto-Clear

.

Software Write Protection

.

Powerup Inadvertant Write Protection

.

Low Power CMOS Technology

.

1,000,000 Program/Erase Cycles

.

100 Year Data Retention

.

Industrial Temperature Range

.

8-pin PDIP, SOIC, TSSOP and 8-pad TDFN Packages

.

This Device is Pb-Free, Halogen Free/BFR Free and RoHS Compliant
