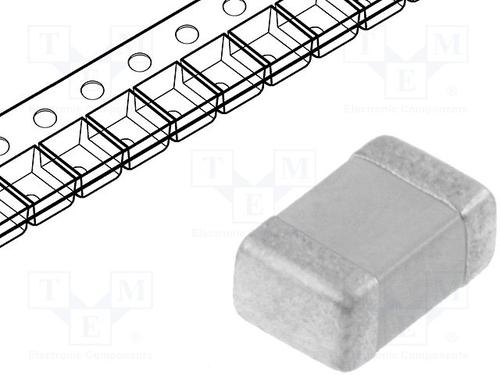

CL21系列 0805 10 pF 50 V 5 % C0G SMD 多层陶瓷电容
MLCC-多层陶瓷器
得捷:
CAP CER 10PF 50V C0G/NP0 0805
立创商城:
10pF ±5% 50V
e络盟:
多层陶瓷电容器, 表面贴装, 10 pF, 50 V, 0805 [2012 公制], ± 5%, C0G / NP0, CL Series
艾睿:
You can&s;t go wrong with this CL21C100JBANNNC multilayer ceramic capacitor from Samsung Electro-Mechanics, it is the most commonly used type of capacitor for multiple applications! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its capacitance value is 10pF. It has a tolerance of 5%. This product is 2 mm long, 0.65 mm tall and 1.25 mm deep.
Chip1Stop:
Cap Ceramic 10pF 50VDC C0G 5% SMD 0805 Paper T/R
TME:
Capacitor: ceramic; MLCC; 10pF; 50V; C0G; ±5%; SMD; 0805
Verical:
Cap Ceramic 10pF 50V C0G 5% Pad SMD 0805 125C T/R
儒卓力:
**KC 10pF 0805 5% 50V NP0 **
额定电压DC 50.0 V
工作电压 50 V
绝缘电阻 10 GΩ
电容 10 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±5 %
额定电压 50 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.65 mm
封装公制 2012
封装 0805
厚度 0.65 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL21C100JBANNNC Samsung 三星 | 当前型号 | 当前型号 |
CL21C100JBANNND 三星 | 完全替代 | CL21C100JBANNNC和CL21C100JBANNND的区别 |
GRM2165C1H100JZ01D 村田 | 类似代替 | CL21C100JBANNNC和GRM2165C1H100JZ01D的区别 |
GRM2165C1H100JZ01J 村田 | 类似代替 | CL21C100JBANNNC和GRM2165C1H100JZ01J的区别 |
