CBR1.5I-M

CBR1.5I-M图片1
CBR1.5I-M图片2
CBR1.5I-M图片3
CBR1.5I-M图片4
CBR1.5I-M图片5
CBR1.5I-M图片6
CBR1.5I-M图片7
CBR1.5I-M图片8
CBR1.5I-M图片9
CBR1.5I-M概述

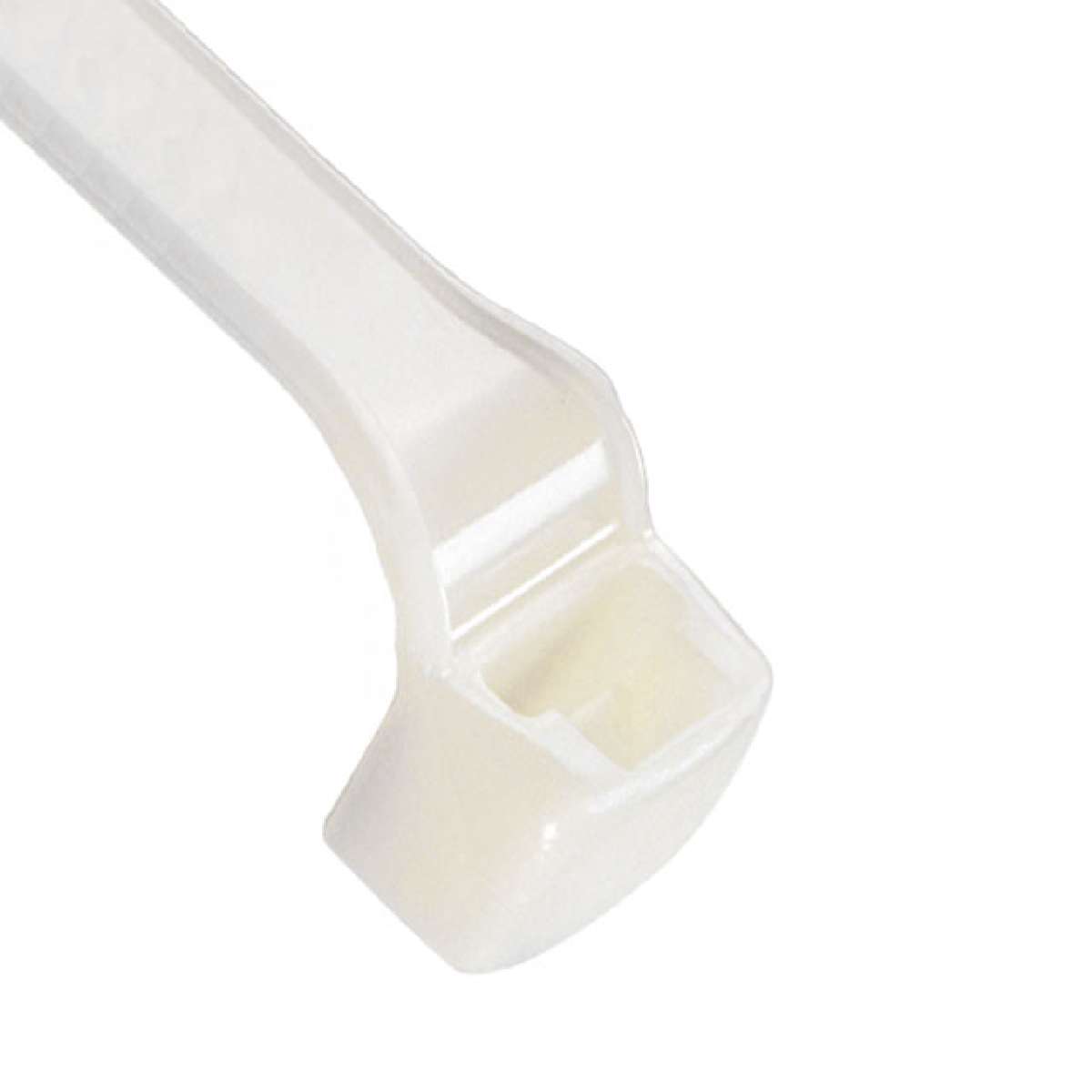

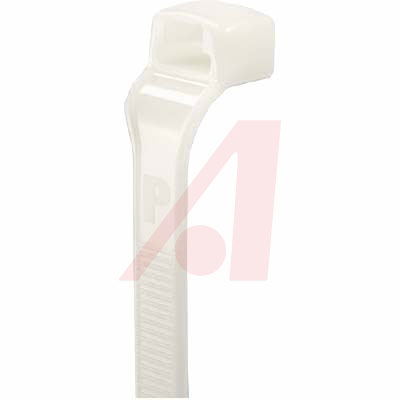

Panduit 尼龙 66 锁定电缆扎带 电缆扎带, 150mm x 3.6 mm

Contour-Ty® Cable Ties

has a huge selection of cable tie styles, sizes, materials, and colors to meet your needs. Panduit"s cable ties bundle, mount, and identify in countless indoor, oudoor and harsh environments.

Parallel-Entry Cable Ties are designed for use in the OEM and Transportation Markets. The parallel-entry design provides a low-profile head which avoids snags and reduces overall bundle size as well as providing no protusion of the tie cut-off which protects workers" arms and hands.

The CONTOUR-TY series have outside teeth and smooth, round edges to protect the cable jacket making it ideal for high vibration applications.

Intermediate Cross Section

* Low profile head avoids snags and reduces overall bundle size

* Fully rounded edges on head and strap so no sharp edges come in contact with cable insulation jacket

* Parallel-entry design threads like a belt 180° entry

* Five cross sections available including our new Heavy-Standard size

* Choice of two materials: Natural Nylon 6.6 and Weather Resistant Nylon 6.6

* All cable tie cross sections have a curved tip that is easier to pick up from flat surfaces, allows faster initial threading and speeds installation

CBR1.5I-M中文资料参数规格
技术参数

工作温度Max 85 ℃

工作温度Min -40 ℃

外形尺寸

长度 150 mm

宽度 3.6 mm

高度 0.25 in

厚度 1.02 mm

物理参数

颜色 Natural

材质 Polyamide PA, Nylon

工作温度 85 ℃

其他

产品生命周期 Active

包装方式 Bag

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买CBR1.5I-M
型号: CBR1.5I-M
制造商: Panduit 泛达
描述:Panduit 尼龙 66 锁定电缆扎带 电缆扎带, 150mm x 3.6 mm
替代型号CBR1.5I-M
型号/品牌 代替类型 替代型号对比

CBR1.5I-M

Panduit 泛达

当前型号

当前型号

ILT1.5I-M

泛达

功能相似

CBR1.5I-M和ILT1.5I-M的区别
