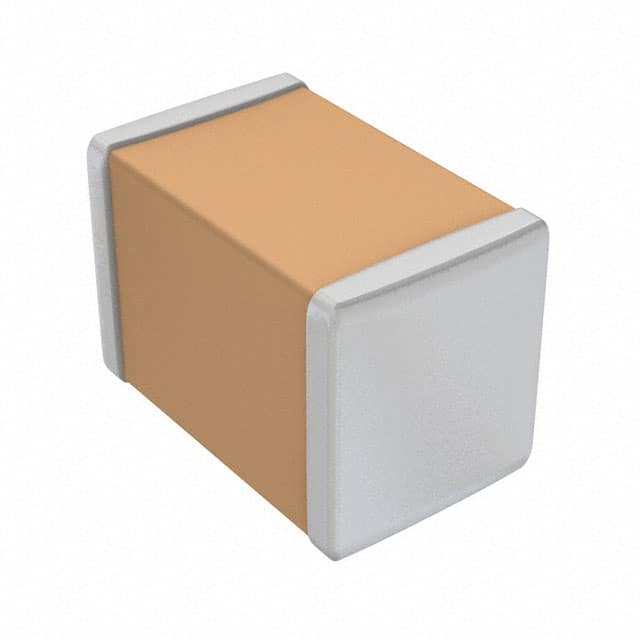

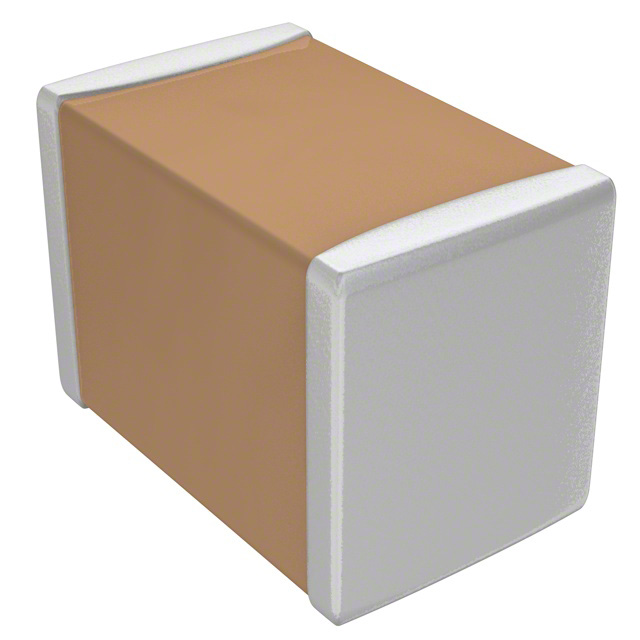

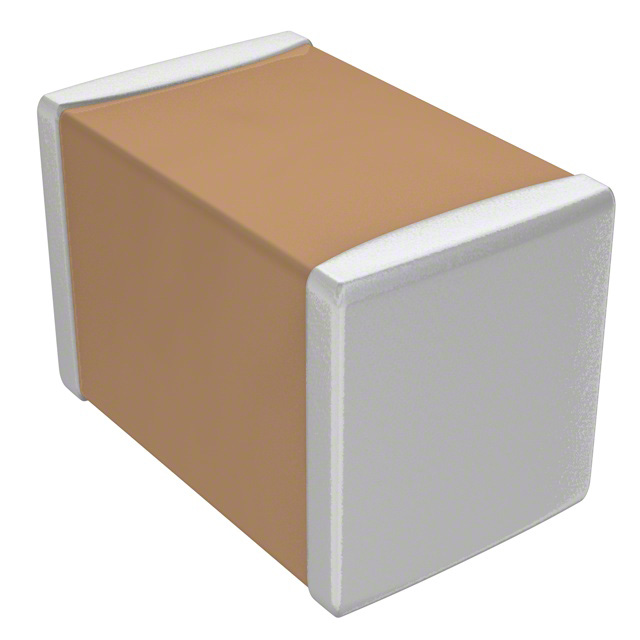

CL21 系列 0805 1 uF 25 V -20 % +80 % Y5V SMD 多层陶瓷电容
MLCC-多层陶瓷器
立创商城:
1uF -20%~+80% 25V
得捷:
CAP CER 1UF 25V Y5V 0805
e络盟:
多层陶瓷电容器, 表面贴装, 1 µF, 25 V, 0805 [2012 公制], +80%, -20%, Y5V, CL Series
艾睿:
This CL21F105ZAFNNNE multilayer ceramic capacitor MLCC from Samsung Electro-Mechanics consists of alternating layers of ceramic, which acts as the dielectric, and a metal layer, which acts as the electrodes. It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its capacitance value is 1uF. This product is 2 mm long, 1.25 mm tall and 1.25 mm deep.
安富利:
Cap Ceramic 1uF 25VDC Y5V -20% to 80% SMD 0805 Embossed T/R
Chip1Stop:
Cap Ceramic 1uF 25VDC Y5V -20% to 80% SMD 0805 Embossed T/R
Verical:
Cap Ceramic 1uF 25V Y5V -20% to 80% Pad SMD 0805 85C T/R
儒卓力:
**KC 1,0µF 0805-20+80% 25V Y5V **
额定电压DC 25.0 V
绝缘电阻 10 GΩ
电容 1 µF
容差 +80/-20%
电介质特性 Y5V
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 25 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.25 mm
封装公制 2012
封装 0805
厚度 1.25 mm
材质 Y5V/-30℃~+85℃
工作温度 -30℃ ~ 85℃
产品生命周期 Active

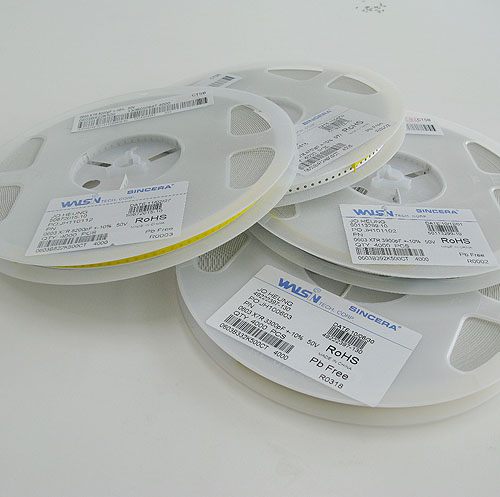

包装方式 Tape & Reel TR
最小包装 2000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL21F105ZAFNNNE Samsung 三星 | 当前型号 | 当前型号 |
CL21F105ZAFNNNF 三星 | 类似代替 | CL21F105ZAFNNNE和CL21F105ZAFNNNF的区别 |
NMC0805Y5V105Z25TRPLPF NIC | 类似代替 | CL21F105ZAFNNNE和NMC0805Y5V105Z25TRPLPF的区别 |
GRM21BF51E105ZA01L 村田 | 类似代替 | CL21F105ZAFNNNE和GRM21BF51E105ZA01L的区别 |
