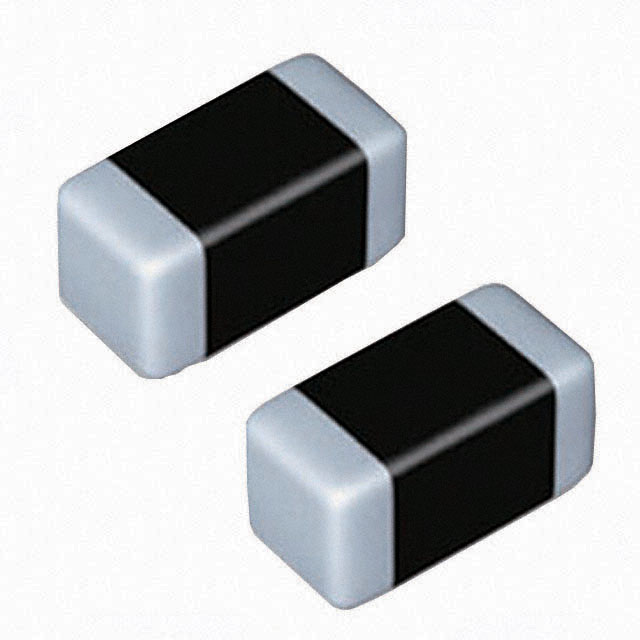

TAIYO YUDEN CBC2012T220K 电感, 22uH, 170MA, 10%, 16MHZ, SMD
22µH Unshielded Wirewound Inductor 190mA 4.81Ohm Max 0805 2012 Metric
得捷:
FIXED IND 22UH 190MA 4.81OHM SMD
立创商城:
22uH ±10% 170mA
e络盟:
电感, 22uH, 170MA, 10%, 16MHZ, SMD
艾睿:
Inductor Power Chip Wirewound 22uH 10% 2.52MHz Ferrite 190mA 4.81Ohm DCR 0805 T/R
Chip1Stop:
Ind Power Chip Wirewound 22uH 10% 2.52MHz Ferrite 190mA 2.0 x 1.2 mm T/R
Verical:
Inductor Power Chip Wirewound 22uH 10% 2.52MHz Ferrite 0.19A 4.81Ohm DCR 0805 T/R
Newark:
# TAIYO YUDEN CBC2012T220K Surface Mount High Frequency Inductor, CB Series, 22 µH, 190 mA, 0805 [2012 Metric], Wirewound
Electro Sonic:
Inductor Power Chip Wirewound 22uH 10% 2.52MHz Ferrite 0.19A 4.81Ohm DCR 0805 T/R
额定电流 190 mA
容差 ±10 %
无卤素状态 Halogen Free
电感 22 µH
自谐频率 16 MHz
产品系列 CB
电感公差 ±10 %
测试频率 2.52 MHz
电阻DC) ≤4.81 Ω
额定电流DC 190 mA
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 3.7 Ω
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2.2 mm
宽度 1.45 mm
高度 1.45 mm
封装公制 2012
封装 0805
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 3000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
