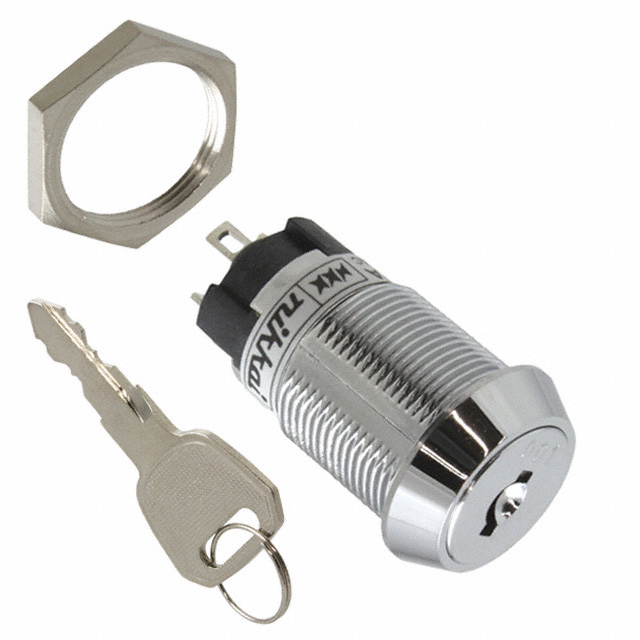

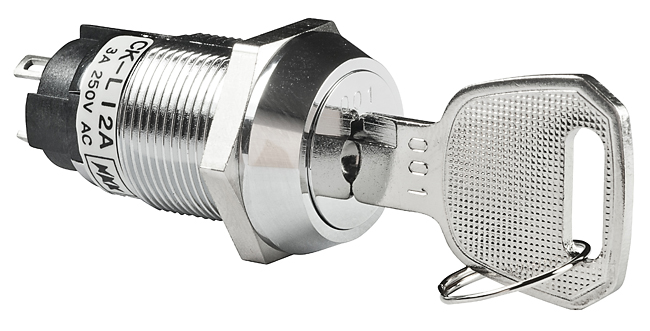

CKL12AFW01-001

Switch Key Lock ON None ON SPDT 90° Flat Key 3A 250VAC Solder Lug 30000Cycles Panel Mount

CKL Model High Security Keylocks

* Rugged die cast housing designed for higher security requirements

* 19 mm dia. bushing

* Flat or tubular keys

Interior construction provides seal for contact area. Epoxy seal terminals prevent entry of flux and other contaminants.

艾睿:
Need to protect your system safe from non-authorized users? This high security CKL12AFW01-001 Keylock switch from NKK Switches is a necessity. It has a SPDT configuration. This device has a maximum current rating of 3 A @ 250VAC. This switch key has a minimum operating temperature of -25 °C and a maximum of 70 °C. The CKL12AFW01-001 switch key has a solder lug termination style. This product is 22 mm long, 40 mm tall and 22 mm deep. The maximum AC voltage rating is 250 VAC.

Allied Electronics:
Switch; Keylock; SPDT; ON-NONE-ON; 19MM; KeyRemove POS 1, 3; Flat Key; 3A; 250VAC; Solder

Chip1Stop:
Switch Key Lock ON None ON SPDT 90° Flat Key 3A 250VAC Solder Lug 30000Cycles Panel Mount

Verical:
Switch Key Lock ON None ON SPDT 90° Flat Key 3A 250VAC Solder Lug 30000Cycles Panel Mount

Newark:
# NKK SWITCHES  CKL12AFW01-001  Keylock Switch, SPDT, On-None-On, Solder, 3 A, 250 V

Powell:
HIGH SECURITY KEYLOCK/SOLDER LUG
