CKM12ATW01

CK 系列 16 mm 开-空-开 高安全性 钥匙 开关 带管状操作杆

High Security Keylocks, Contact Rating 3 A @ 250 VAC, Contact Resistance 20 Milliohms Max.

* Epoxy sealed terminals prevent entry of flux and other contaminatints

* Interior construction provides seal for outer area

High insulating material for 16 mm CKM models withstands over 15 kV of electrostatic discharge, thus providing antistatic feature.

贸泽:
键锁开关 SPDT ON-NONE-ON

艾睿:

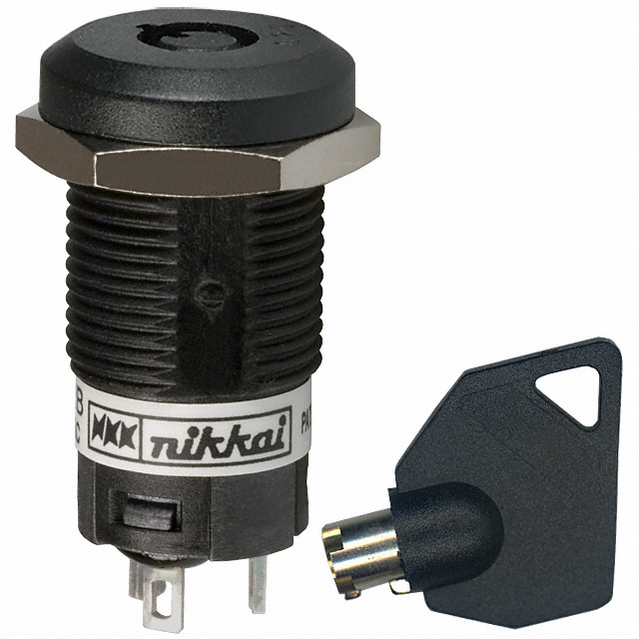

With just a turn a key, you can power on and off your system and keep it safe from non-authorized users by using this high security CKM12ATW01 Keylock switch from NKK Switches. It has a SPDT configuration. This device has a maximum current rating of 3 A @ 250VAC. This switch key has an operating temperature range of -25 °C to 70 °C. The CKM12ATW01 switch key has a solder lug termination style. This product is 19 mm long, 35.2 mm tall and 19 mm deep. The maximum AC voltage rating is 250 VAC.

Allied Electronics:
Switch; Keylock; SPDT; ON-NONE-ON; 16MM; Key Remove POS 1, 3; Tube Key; 3A; 250VAC; Solder

Chip1Stop:
Switch Key Lock ON None ON SPDT 90° Tubular Key 3A 250VAC Solder Lug 30000Cycles Panel Mount

Verical:
Switch Key Lock ON None ON SPDT 90° Tubular Key 3A 250VAC Solder Lug 30000Cycles Panel Mount

Newark:
# NKK SWITCHES  CKM12ATW01  Keylock Switch, SPDT, On-None-On, Solder, 3 A, 250 V

Powell:
HIGH SECURITY KEYLOCK/SOLDER LUG
