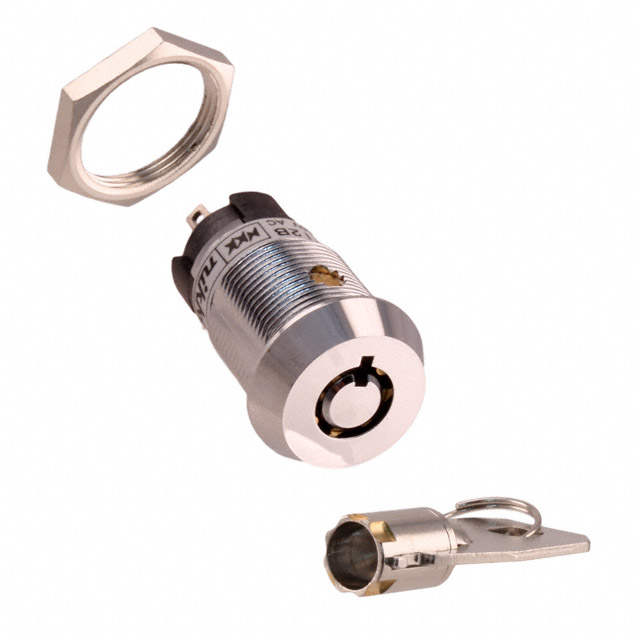

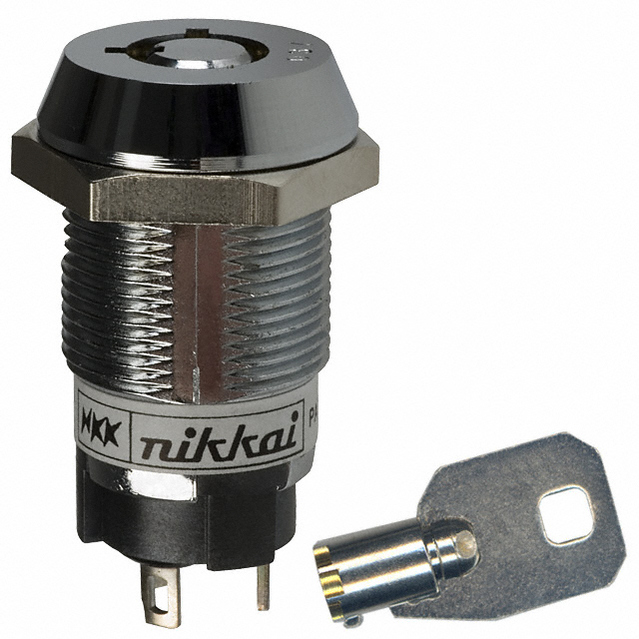

CK 系列 19 mm 开-空-开 高安全性 钥匙 开关 带管状操作杆
High Security Keylocks, Contact Rating 3 A, Solder Lug Termination, Contact Resistance 20 Milliohms
* Epoxy sealed terminals prevent entry of flux and other contaminants
* Interior construction provides seal for contact area
Rugged, die cast housing 19 mm CKL models designed for higher security requirements. Vertically rotating switching mechanism combines with self-cleaning sliding contacts for high reliability and long operating life.
贸泽:
键锁开关 SPDT ON-NONE-ON
艾睿:
Switch Key Lock ON None ON SPDT 90° Tubular Key 3A 250VAC Solder Lug 30000Cycles Panel Mount
Allied Electronics:
Switch; Keylock; SPDT; ON-NONE-ON; 19MM; Key Remove POS 1, 3; Tube Key; 3A; 250VAC; Solder
Chip1Stop:
Switch Key Lock ON None ON SPDT 90° Tubular Key 3A 250VAC Solder Lug 30000Cycles Panel Mount
Verical:
Switch Key Lock ON None ON SPDT 90° Tubular Key 3A 250VAC Solder Lug 30000Cycles Panel Mount
Newark:
# NKK SWITCHES CKL12ATW01 Keylock Switch, SPDT, On-None-On, Solder, 3 A, 250 V
Powell:
HIGH SECURITY KEYLOCK/SOLDER LUG
触点电镀 Silver
额定电流 3.00 A
绝缘电阻 ≥100MΩ @500VDC
方向 Vertical
触点类型 SPDT
针脚数 2
接触电阻 ≤20 MΩ
触点额定电流 3.00 A
额定电流Max 3A @250VAC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压 250 VAC
额定电压AC Max 250 V
接触电阻Max 20 mΩ
安装方式 Panel, Solder Lug
长度 22 mm
宽度 22 mm
高度 40 mm
直径 22.0 mm
触点材质 Silver
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
