CD4067BM96

16通道模拟多路复用器/多路解复用器

CD4067B and CD4097B CMOS analog multiplexers/demultiplexers

.

are digitally controlled analog switches having low ON impedance, low OFF leakage current, and internal address decoding. In addition, the ON resistance is relatively constant over the full input-signal range. The CD4067B is a 16-channel multiplexer with four binary control inputs, A, B, C, D, and an inhibit input, arranged so that any combination of the inputs selects one switch.

The CD4097B is a differential 8-channel multiplexer having three binary control inputs, A, B, C, and an inhibit input. The inputs permit selection of one of eight pairs of switches.

A logic "1" present at the inhibit input turns all channels off.

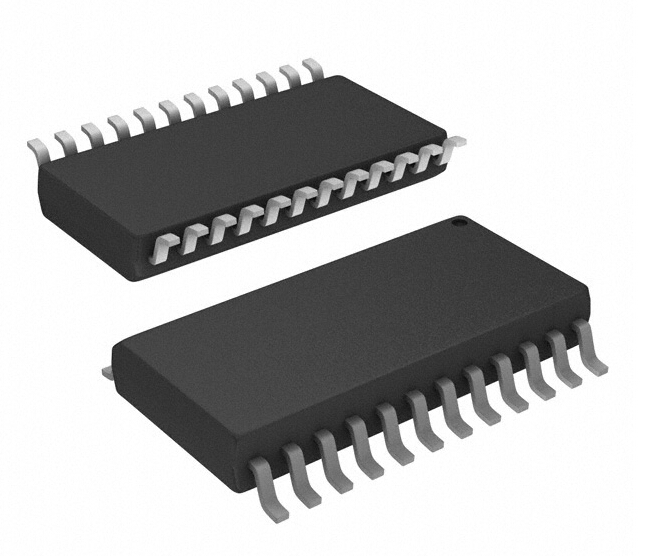

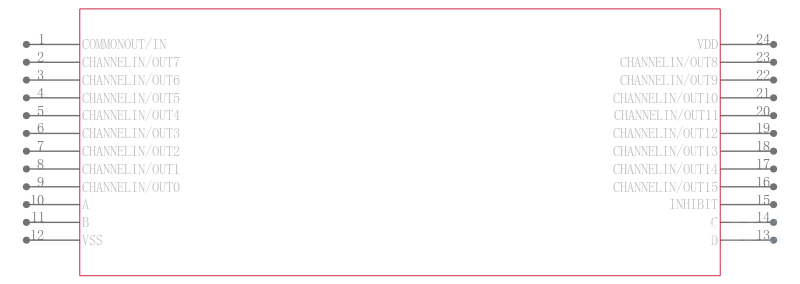

The CD4067B and CD4097B types are supplied in 24-lead hermetic dual-in-line ceramic packages F3A suffix, 24-lead dual-in-line plastic packages E suffix, 24-lead small-outline packages M, M96, and NSR suffixes, and 24-lead thin shrink small-outline packages P and PWR suffixes.
