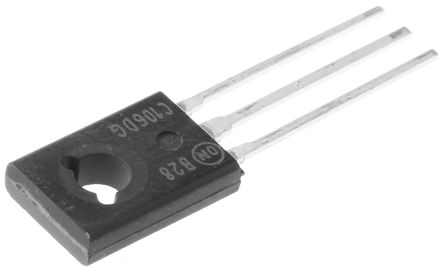

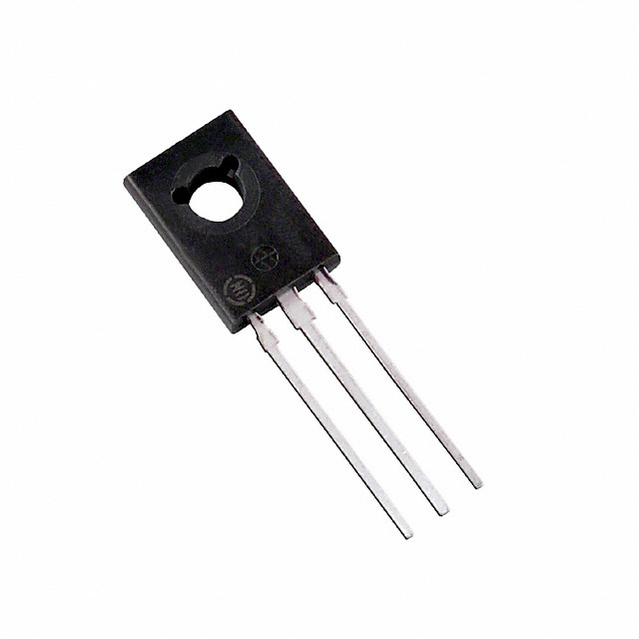

ON SEMICONDUCTOR C106DG. 晶闸管, SCR, C77, 4A, 400V
The is a 3-pin Sensitive Gate Silicon Controlled Rectifier is a glassivated PNPN device designed for high volume consumer applications such as temperature, light and speed control, process and remote control and warning systems, where reliability of operation is important.
- .
- Glassivated surface for reliability and uniformity
- .
- Practical level triggering and holding characteristics
- .
- Flat, rugged, thermopad construction for low thermal resistance, high heat dissipation & durability
- .
- Sensitive gate triggering
- .
- 0.5W Forward peak gate power
- .
- 0.1W Forward average gate power
触点数 3
额定电压DC 400 V
额定电流 4.00 A
无卤素状态 Halogen Free
针脚数 3
正向电压 2.2 V
转换速率 8.00 V/μs
保持电流 6 mA
热阻 3℃/W RθJC
正向电流 4 A
保持电流Max 3 mA
工作温度Max 110 ℃
工作温度Min -40 ℃
工作结温Max 110 ℃
安装方式 Through Hole
引脚数 3
封装 TO-126-3
长度 7.74 mm
宽度 2.66 mm
高度 11.04 mm
封装 TO-126-3
工作温度 -40℃ ~ 110℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C106DG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
C106D1G 安森美 | 类似代替 | C106DG和C106D1G的区别 |
2N6509G 力特 | 功能相似 | C106DG和2N6509G的区别 |
