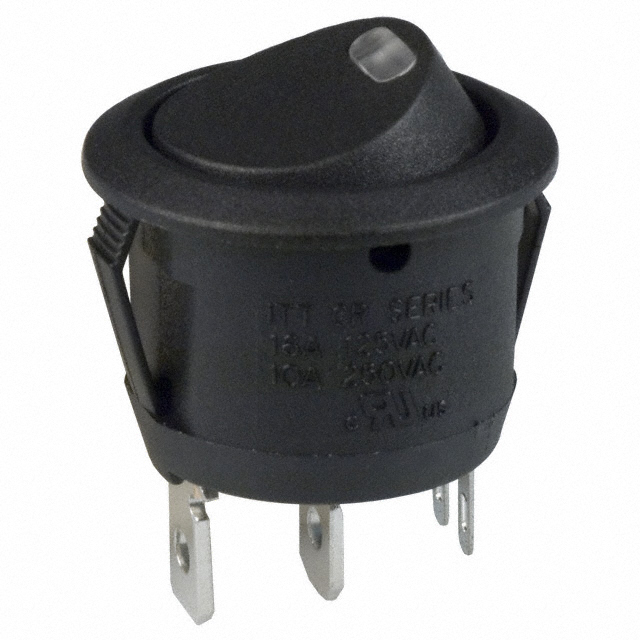

Switch Rocker ON None OFF SPST Quick Connect Oval Rocker 16A 250VAC
Safely turn on and off designs with this rocker switch from C&K Components. This device has a maximum current rating of 16 A @ 125VAC. It has a SPST configuration. This rocker switch panel has an operating temperature range of -20 °C to 85 °C. The CR102J5RS215QF6 rocker switch panel has a quick connect termination style. This product is 23 mm long, 28.1 mm tall and 23 mm deep. The maximum AC voltage rating is 250 VAC.
触点电镀 Silver
接触器类型 Rocker
额定电压AC 125 V
额定电流 16A AC
排数 1
方向 Vertical
触点类型 SPST
额定电流Max 16A @125VAC
工作温度Max 85 ℃
工作温度Min -20 ℃
额定电压AC Max 250 V
安装方式 Quick Connect, Panel, Snap-In
封装 -
长度 23 mm
高度 28.1 mm
直径 23.0 mm
封装 -
外壳颜色 Black
颜色 Red
触点材质 Silver
工作温度 -20℃ ~ 85℃
产品生命周期 10000 Cycles
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CR102J5RS215QF6 C&K Components | 当前型号 | 当前型号 |
RS215% C&K Components | 功能相似 | CR102J5RS215QF6和RS215%的区别 |
