低功耗的SoC (系统级芯片)与MCU,存储器,低于1GHz的射频收发器和USB控制器 Low-Power SoC System-on-Chip with MCU, Memory, Sub-1 GHz RF Transceiver, and USB Controller
The is a sub-1GHz RF Transceiver with MCU and 32kB flash memory. The true low-power system-on-chip SoC designed for low power wireless applications. The CC1111Fx combines the excellent performance of the state-of-the-art RF transceiver CC1101 with an industry-standard enhanced 8051 MCU, up to 32kB of in-system programmable flash memory and up to 4kB of RAM and many other powerful features. The CC1111Fx is highly suited for systems where very low power consumption is required. This is ensured by several advanced low-power operating modes. The CC1111Fx adds a full-speed USB 2.0 interface to the feature set of the CC1110Fx. Interfacing to a PC using the USB interface is quick and easy and the high data rate 12Mbps of the USB interface avoids the bottlenecks of RS-232 or low-speed USB interfaces.
频率 300MHz ~ 348MHz,391MHz ~ 464MHz,782MHz ~ 928MHz
电源电压DC 3.00V min
供电电流 300 nA
时钟频率 24.0 MHz
RAM大小 4 KB
数据速率 500 kbps
FLASH内存容量 32768 B
输出功率 10 dBm
UART数量 1
待机电流 300 nA
天线接线 Differential
工作温度Max 85 ℃
工作温度Min 0 ℃
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount

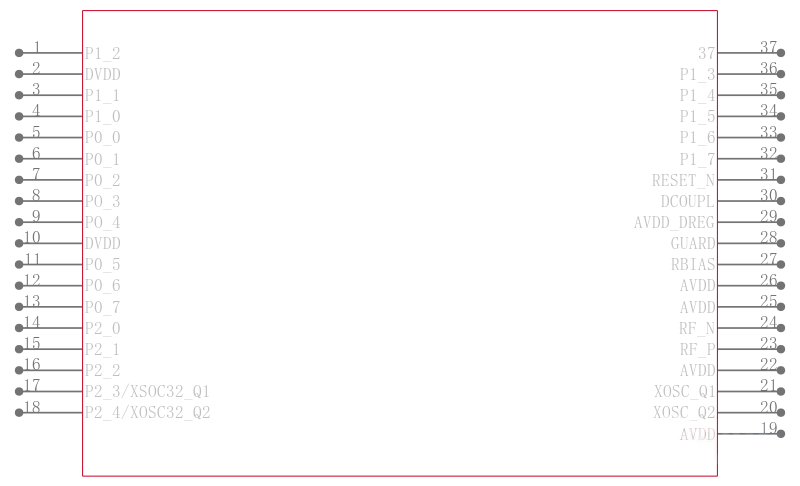

引脚数 36

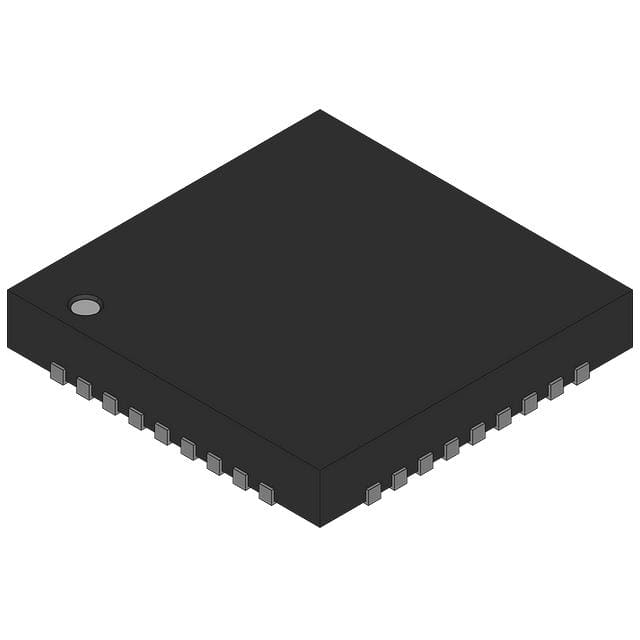

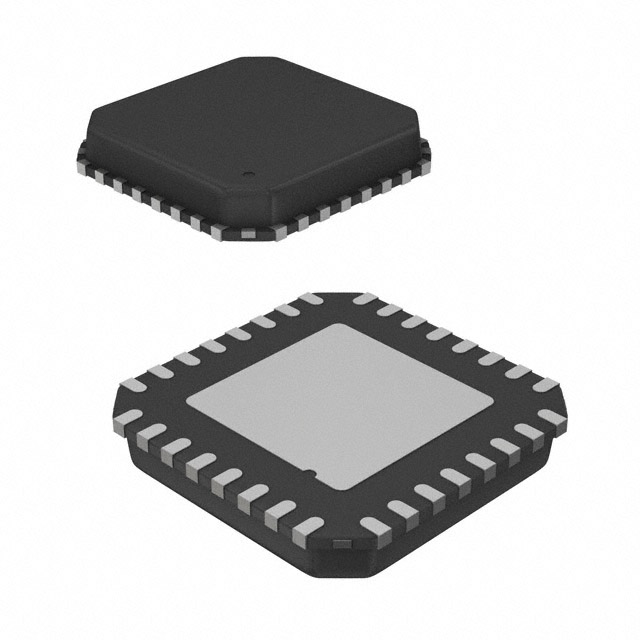

封装 QFN-36
封装 QFN-36
工作温度 0℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC1111F32RSP TI 德州仪器 | 当前型号 | 当前型号 |
CC1111F32RSPR 德州仪器 | 完全替代 | CC1111F32RSP和CC1111F32RSPR的区别 |
CC2511F32RSP 德州仪器 | 类似代替 | CC1111F32RSP和CC2511F32RSP的区别 |
CC2511F16RSP 德州仪器 | 类似代替 | CC1111F32RSP和CC2511F16RSP的区别 |
