TEXAS INSTRUMENTS CC1100RTK 芯片, 单片射频收发器, SMD
The is a highly integrated RF Transceiver designed for low-power wireless applications. The circuit is mainly intended for the ISM industrial, scientific and medical and SRD short range device frequency bands at 315, 433, 868 and 915 MHz, but can easily be programmed for operation at other frequencies in the 300 to 348, 400 to 464 and 800 to 928MHz bands. The RF transceiver is integrated with a highly configurable baseband modem. The modem supports various modulation formats and has a configurable data up to 500kBaud. CC1100 provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication and wake-on-radio. The main operating parameters and the 64bytes transmit/receive FIFOs of CC1100 can be controlled via an SPI interface. In a typical system, the CC1100 will be used together with a microcontroller and a few additional passive components.
频率 300MHz ~ 348MHz,400MHz ~ 464MHz,800MHz ~ 928MHz
电源电压DC 3.60V max

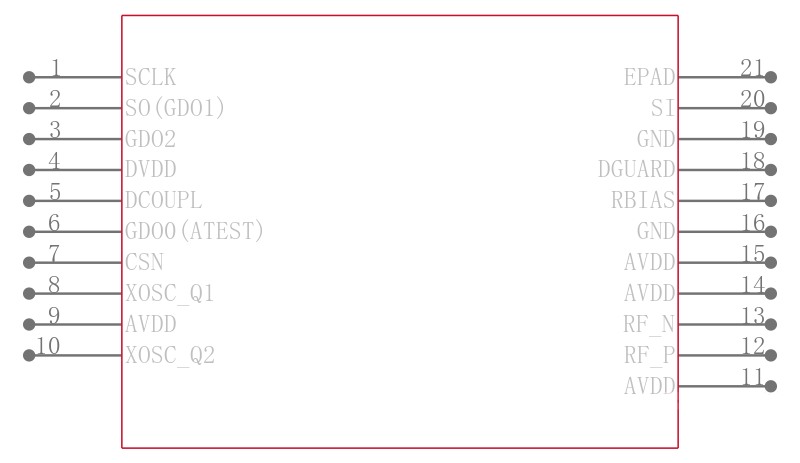

针脚数 20
数据速率 500 kbps
输出功率 10 dBm
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 20

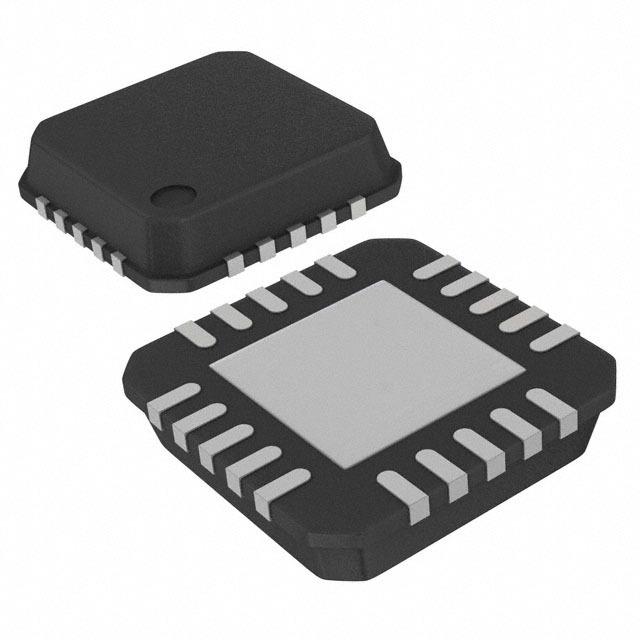

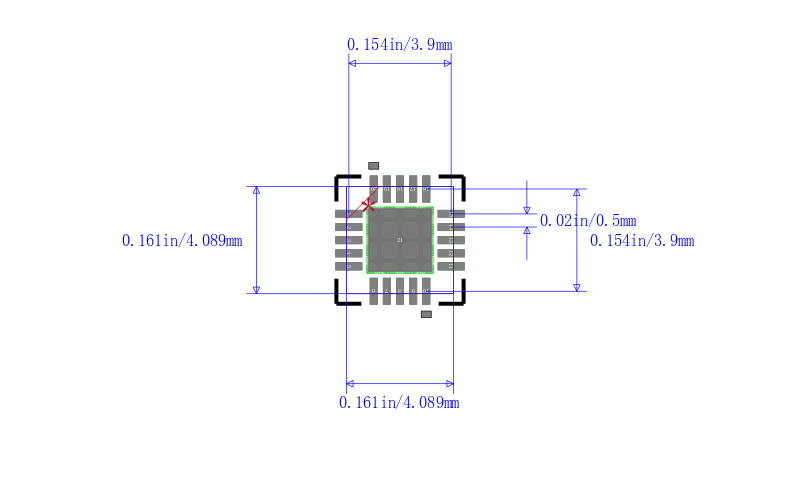

封装 QFN-20
封装 QFN-20
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC1100RTK TI 德州仪器 | 当前型号 | 当前型号 |
CC1100RTKG3 德州仪器 | 完全替代 | CC1100RTK和CC1100RTKG3的区别 |
CC1101RGPR 德州仪器 | 类似代替 | CC1100RTK和CC1101RGPR的区别 |
CC110LRGPR 德州仪器 | 类似代替 | CC1100RTK和CC110LRGPR的区别 |
