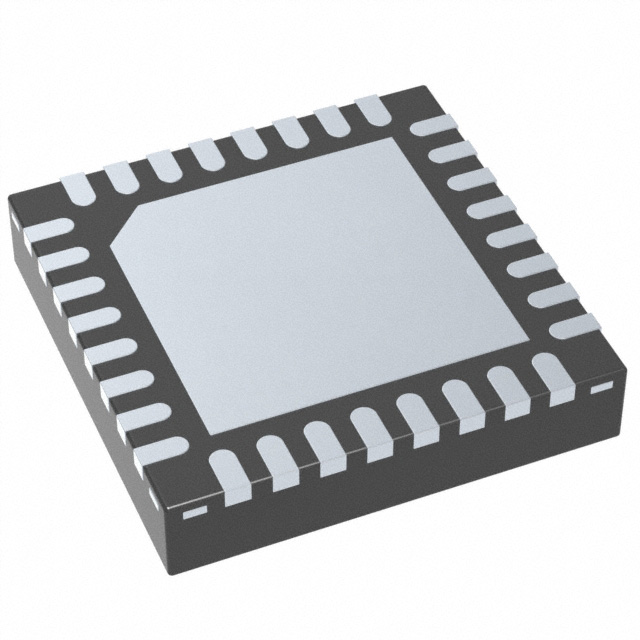

具有 128kB 闪存的 SimpleLink™ 32 位 Arm Cortex-M3 低于 1GHz 无线 MCU 32-VQFN -40 to 85
* Microcontroller * Powerful ARM® Cortex®-M3 * EEMBC CoreMark® Score: 142 * EEMBC ULPBench™ Score: 158 * Up to 48-MHz Clock Speed * 128KB of In-System Programmable Flash * 8KB of SRAM for Cache or as General- Purpose RAM * 20KB of Ultralow Leakage SRAM * 2-Pin cJTAG and JTAG Debugging * Supports Over-the-Air Upgrade OTA * Ultralow Power Sensor Controller * Can Run Autonomous From the Rest of the System * 16-Bit Architecture * 2KB of Ultralow Leakage SRAM for Code and Data * Efficient Code-Size Architecture, Placing -RTOS, Drivers and Bootloader in ROM * RoHS-Compliant Package * 7-mm × 7-mm RGZ VQFN48 30 GPIOs * 5-mm × 5-mm RHB VQFN48 15 GPIOs * 4-mm × 4-mm RSM VQFN48 10 GPIOs * Peripherals * All Digital Peripheral Pins Can Be Routed to Any GPIO * Four General-Purpose Timer Modules Eight 16-Bit or Four 32-Bit Timers, PWM Each * 12-Bit ADC, 200 ksamples/s, 8-Channel Analog MUX * Continuous Time Comparator * Ultralow Power Clocked Comparator * Programmable Current Source * UART * 2× SSI SPI, MICROWIRE, TI * I2C * I2S * Real-Time Clock RTC * AES-128 Security Module * True Random Number Generator TRNG * Support for Eight Capacitive Sensing Buttons * Integrated Temperature Sensor * External System * On-Chip Internal DC-DC Converter * Very Few External Components * Seamless Integration With the SimpleLink™ CC1190 Range Extender * Low Power * Wide Supply Voltage Range: 1.8 to 3.8 V * Active-Mode RX: 5.5 mA * Active-Mode TX at +10 dBm: 12.9 mA * Active-Mode MCU 48 MHz Running Coremark: 2.5 mA 51 μA/MHz * Active-Mode MCU: 48.5 CoreMark/mA * Active-Mode Sensor Controller at 24 MHz: 0.4 mA + 8.2 μA/MHz * Sensor Controller, One Wake Up Every Second Performing One 12-Bit ADC Sampling: 0.85 μA * Standby: 0.6 μA RTC Running and RAM and CPU Retention * Shutdown: 185 nA Wakeup on External Events * RF Section * Excellent Receiver Sensitivity –124 dBm Using Long-Range Mode, –110 dBm at 50 kbps * Excellent Selectivity: 52 dB * Excellent Blocking Performance: 90 dB * Programmable Output Power up to +14 dBm * Single-Ended or Differential RF Interface * Suitable for Systems Targeting Compliance With Worldwide Radio Frequency Regulations * ETSI EN 300 220, EN 303 131, EN 303 204 Europe * FCC CFR47 Part 15 US * ARIB STD-T108 Japan * Wireless M-Bus and IEEE 802.15.4g PHY
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC1310F64RSMR TI 德州仪器 | 当前型号 | 当前型号 |
CC1310F64RSMT 德州仪器 | 类似代替 | CC1310F64RSMR和CC1310F64RSMT的区别 |
