CC2400-RTR1

2.4 GHz的低功耗RF收发器 2.4 GHz Low-Power RF Transceiver

Product Description

TheCC2400is a true single-chip 2.4 GHz RF transceiver designed for low-power and low-voltage wireless applications. The RF transceiver is integrated with a baseband modem supporting data rates up to 1 Mbps.

The CC2400is a low-cost, highly integrated solution enabling robust wireless

communication in the 2.4 - 2.4835 GHz unlicensed ISM band. It is intended for systems compliant with world-wide regulations covered by EN 300 440 Europe, CFR47 Part 15 US and ARIB

STD-T66 Japan.

Targeting a wide range of applications at 2.4 GHz, the CC2400supports over-the-air data  rates  of  10  kbps,  250  kbps  and 1 Mbps without requiring any modifications to the hardware.

Key Features

• True single-chip 2.4 GHz RF transceiver with baseband modem

• 10 kbps, 250 kbps and 1 Mbps over the-air data rates

• Low current consumption RX: 24 mA

• Low core supply voltage 1.8 V

• Programmable output power

• No external RF switch / filter needed

• I/Q low-IF receiver

• I/Q direct up-conversion transmitter

• Few external components

• FIFO allows bursting of data

• Packet handling hardware

• Data buffering

• Digital RSSI output

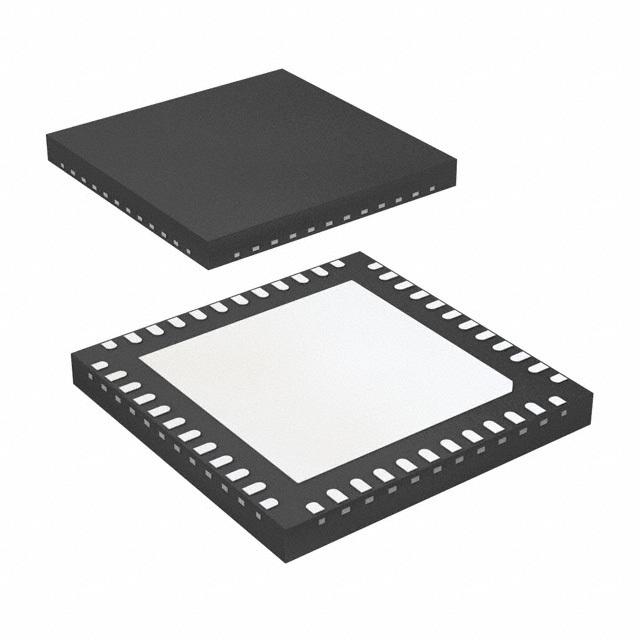

• Small size QFN 48 package, 7x7 mm

• Reference design complies with EN 300 328, EN 300 440, FCC CFR47 part 15 and ARIB STD-T66

• Powerful and flexible development tools available

• Easy-to-use software for generating the  CC2400configuration data

Applications

•  2.4 GHz MHz ISM/SRD band systems

•  Game controllers

•  Sports and leisure equipment

•  Wireless audio

•  PC peripherals

•  Advanced toys
