CC2533F32RHAT

一种优化的系统级芯片解决方案的2.4GHz IEEE 802.15.4遥控应用 An Optimized System-on-Chip Solution for 2.4-GHz IEEE 802.15.4 Remote Control Applications

DESCRIPON

The CC2533 is an optimized system-on-chip SoC solution for IEEE 802.15.4 based remote-control systems. It enables single-chip remote controls to be built with low bill-of-material cost when used as a flexible SoC. It also provides a simple path to adding RF4CE capability to a device or target when used in the wireless network processor configuration of the RemoTI™ RF4CE stack. Robust network nodes can be built with very low total bill-of-material costs.

FEATURES

• RF/Layout

– 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver

– Excellent Receiver Sensitivity and Robustness to Interference

– Programmable Output Power Up to 4.5 dBm

– Boost-Mode TX at 7 dBm

– Very Few External Components

– Only a Single Crystal Needed for Asynchronous Networks

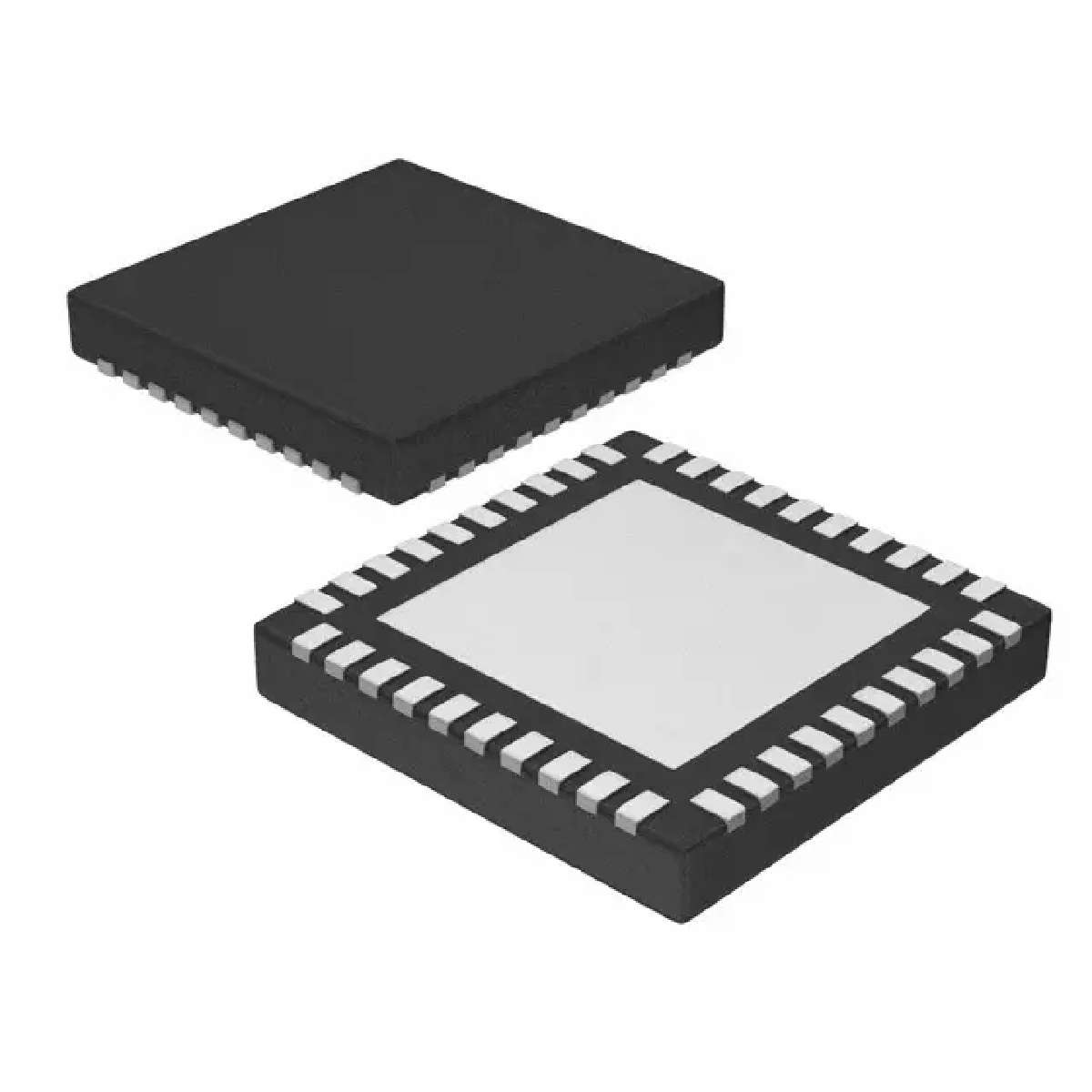

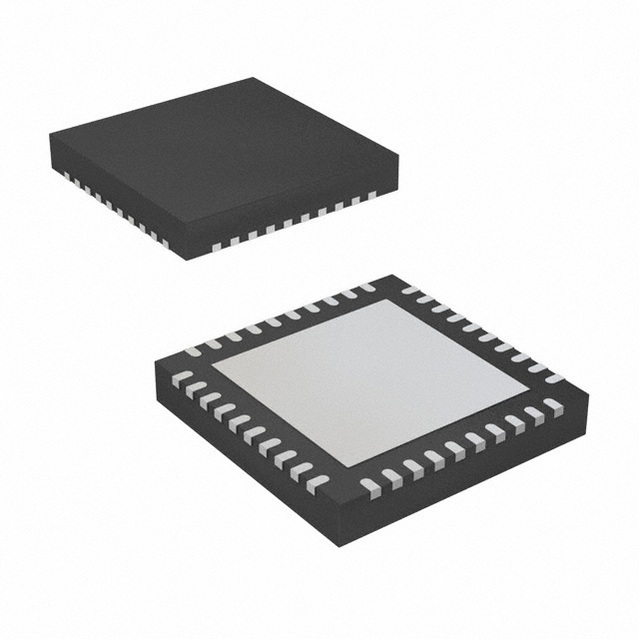

– Space-Saving 6-mm × 6-mm QFN40 Package

– Suitable for Systems Targeting Compliance With Worldwide Radio-Frequency Regulations: ETSI EN 300 328 and EN 300 440 Europe, FCC CFR47 Part 15 US, and ARIB STD-T-66 Japan

– Pin- and Software-Compatible With the CC2530Fxxx Series

• Low Power

– Active-Mode RX CPU Idle: 25 mA

– Active Mode TX at 0 dBm CPU Idle: 28.5 mA

– Power Mode 1 4 ms Wake-Up: 0.2 mA

– Power Mode 2 Sleep Timer Running: 1 mA

– Power Mode 3 External Interrupts: 0.5 mA

– Wide Supply-Voltage Range 2 V–3.6 V

• Microcontroller

– High-Performance and Low-Power 8051 Microcontroller Core With Code Prefetch

– 64- or 96-KB In-System-Programmable Flash

– 4- or 6-KB RAM With Retention in All Power Modes

– Hardware Debug Support

• Peripherals

– Powerful Five-Channel DMA

– IEEE 802.15.4 MAC Timer, General-Purpose Timers One 16-Bit, Two 8-Bit

– IR Generation Circuitry

– 32-kHz Sleep Timer With Capture

– CSMA/CA Hardware Support

– Accurate Digital RSSI/LQI Support

– Battery Monitor Comparator

– Random Number Generation

– AES Security Coprocessor

– Two Powerful USARTs With Support for UART and SPI

– I2C Interface

– 23 General-Purpose I/O Pins

– Watchdog Timer

• Development Tools

– CC2533 Remote Control Development Kit for RF4CE

– CC2533 Development Kit

– CC2533EMK Evaluation Modules

– SmartRF™ Software

– Packet Sniffer

– IAR Embedded Workbench™ Available

APPLICATIONS

• ZigBee™ RF4CE Remote Control Target and Device

• 2.4-GHz IEEE 802.15.4 Systems Based on TIMAC or SimpliciTI™ Network Protocol

• Consumer Electronics

• Electronic Shelf Labeling
