低功耗的SoC (系统级芯片)与MCU,存储器,低于1GHz的射频收发器和USB控制器 Low-Power SoC System-on-Chip with MCU, Memory, Sub-1 GHz RF Transceiver, and USB Controller
Account for all of your device"s processes with this application processor from Texas Instruments. This part has an operating temperature range of -40 °C to 85 °C. It has a maximum clock speed of 928 MHz. Its Ethernet interface type is mii. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2 V, while its maximum is 3.6 V. Its ADC resolution is 12 Bit. This device utilizes cmos technology. Its flash program memory is 16KB. This device is based on the 8051 core architecture.
频率 300MHz ~ 348MHz,391MHz ~ 464MHz,782MHz ~ 928MHz
电源电压DC 2.00V min
RAM大小 2 KB
数据速率 500 kbps
FLASH内存容量 16384 B
输出功率 10 dBm
待机电流 300 nA
天线接线 Differential
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
安装方式 Surface Mount
引脚数 36

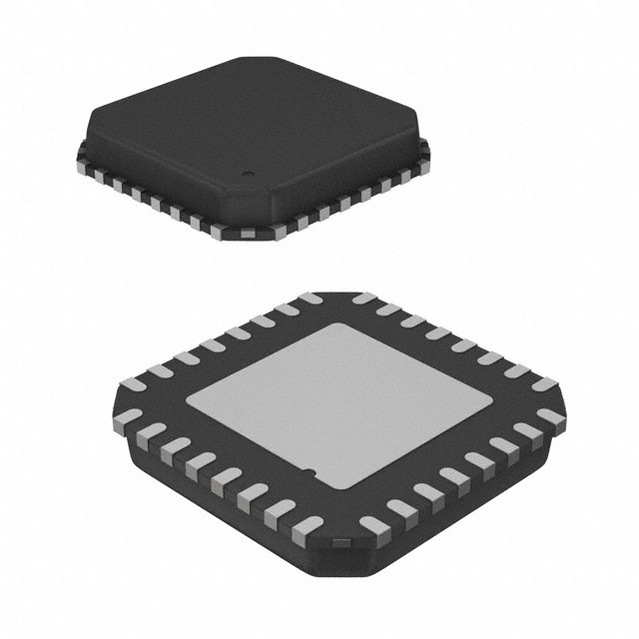

封装 QFN-36
高度 0.86 mm
封装 QFN-36
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC1110F16RSPR TI 德州仪器 | 当前型号 | 当前型号 |
CC2510F16RSPR 德州仪器 | 类似代替 | CC1110F16RSPR和CC2510F16RSPR的区别 |
CC2510F16RSP 德州仪器 | 类似代替 | CC1110F16RSPR和CC2510F16RSP的区别 |
