TEXAS INSTRUMENTS CDCEL925PW 芯片, 时钟合成器, 160MHZ, TSSOP-16
The is a 2-PLL programmable VCXO Clock Synthesizer with 1.8V LVCMOS outputs. It generates up to five output clocks from a single input frequency. Each output can be programmed in-system for any clock frequency up to 230MHz, using up to two independent configurable PLLs. The input accepts an external crystal or LVCMOS clock signal. In case of a crystal input, an on-chip load capacitor is adequate for most applications. The value of the load capacitor is programmable from 0 to 20pF. Additionally, an on-chip VCXO is selectable which allows synchronization of the output frequency to an external control signal, that is, PWM signal. The deep M/N divider ratio allows the generation of zero-ppm audio/video, networking WLAN, Bluetooth, Ethernet, GPS or interface USB, IEEE1394, memory stick clocks from a 27MHz reference input frequency, for example. The PLLs support SSC spread-spectrum clocking.
频率 160 MHz
电源电压DC 1.80 V
输出接口数 5
供电电流 20 mA
电路数 1
针脚数 16
占空比 60% Max
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.7V ~ 1.9V
电源电压Max 1.9 V
电源电压Min 1.7 V
安装方式 Surface Mount
引脚数 16

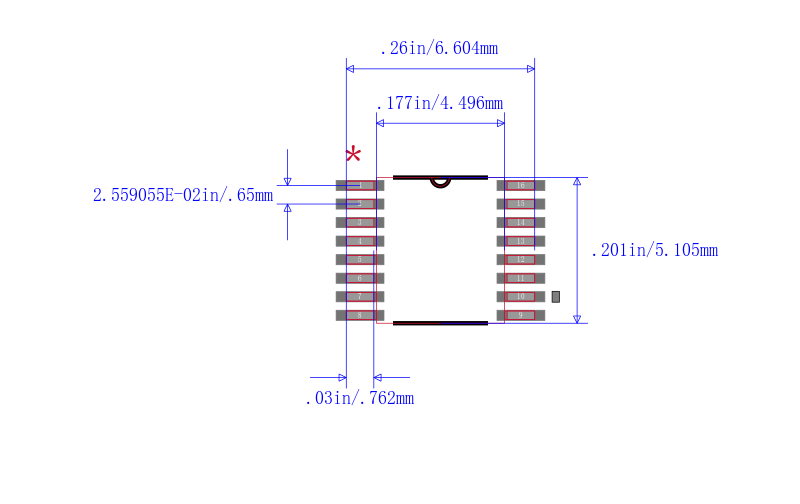

封装 TSSOP-16
宽度 4.4 mm
封装 TSSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 视频和目视, 成像, 消费电子产品, 便携式器材, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CDCEL925PW TI 德州仪器 | 当前型号 | 当前型号 |
CDCE925PW 德州仪器 | 完全替代 | CDCEL925PW和CDCE925PW的区别 |
CDCE925PWR 德州仪器 | 完全替代 | CDCEL925PW和CDCE925PWR的区别 |
CDCE925PWRG4 德州仪器 | 完全替代 | CDCEL925PW和CDCE925PWRG4的区别 |
