具有三态输出的3.3V锁相环时钟驱动器 3.3-V PHASE-LOCK LOOP CLOCK DRIVER WITH 3-STATE OUTPUTS
The CDC2536 is a high-performance, low-skew, low-jitter clock driver. It uses a phase-lock loop PLL to precisely align, in both frequency and phase, the clock output signals to the clock input CLKIN signal. It is specifically designed for use with synchronous DRAMs and popular microprocessors operating at speeds from 50 MHz to 100 MHz or down to 25 MHz on outputs configured as half-frequency outputs. The CDC2536 operates at 3.3-V VCC and is designed to drive a 50-W transmission line. The CDC2536 also provides on-chip series-damping resistors, eliminating the need for external termination components.
The feedback FBIN input is used to synchronize the output clocks in frequency and phase to the input clock CLKIN. One of the six output clocks must be fed back to FBIN for the PLL to maintain synchronization between CLKIN and the outputs. The output used as the feedback pin is synchronized to the same frequency as CLKIN.
The Y outputs can be configured to switch in phase and at the same frequency as CLKIN. The select SEL input configures three Y outputs to operate at one-half or double the CLKIN frequency, depending on which pin is fed back to FBIN see Tables 1 and 2. All output signal duty cycles are adjusted to 50% independent of the duty cycle at the input clock.
Output-enable OE\ is provided for output control. When OE\ is high, the outputs are in the high-impedance state. When OE\ is low, the outputs are active. TEST is used for factory testing of the device and can be use to bypass the PLL. TEST should be strapped to GND for normal operation.
Unlike many products containing PLLs, the CDC2536 does not require external RC networks. The loop filter for the PLL is included on-chip, minimizing component count, board space, and cost.
Because it is based on PLL circuitry, the CDC2536 requires a stabilization time to achieve phase lock of the feedback signal to the reference signal. This stabilization time is required following power up and application of a fixed-frequency, fixed-phase signal at CLKIN, as well as following any changes to the PLL reference or feedback signals. Such changes occur upon change of SEL, enabling the PLL via TEST, and upon enable of all outputs via OE\\\\.
The CDC2536 is characterized for operation from 0°C to 70°C.
频率 100 MHz
电源电压DC 3.30 V
输出接口数 6
供电电流 2 mA
电路数 1
耗散功率 0.68 W
输出电流驱动 12.0 mA
占空比 60% Max
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 680 mW
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 28

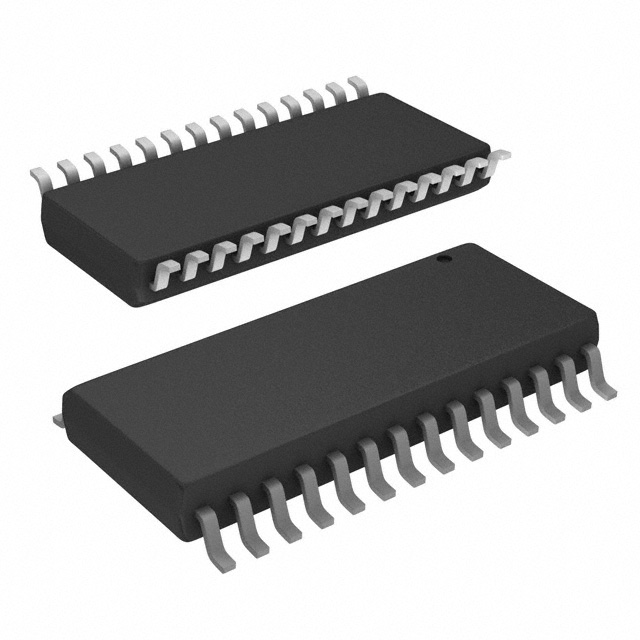

封装 SSOP-28
宽度 5.3 mm
封装 SSOP-28
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CDC2536DB TI 德州仪器 | 当前型号 | 当前型号 |
CDC2536DBRG4 德州仪器 | 完全替代 | CDC2536DB和CDC2536DBRG4的区别 |
CDC2536DBR 德州仪器 | 完全替代 | CDC2536DB和CDC2536DBR的区别 |
CDC2536DBG4 德州仪器 | 完全替代 | CDC2536DB和CDC2536DBG4的区别 |
