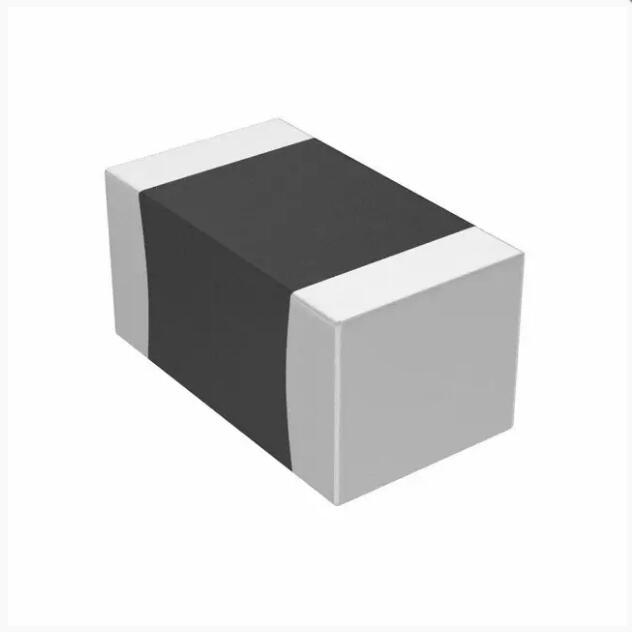

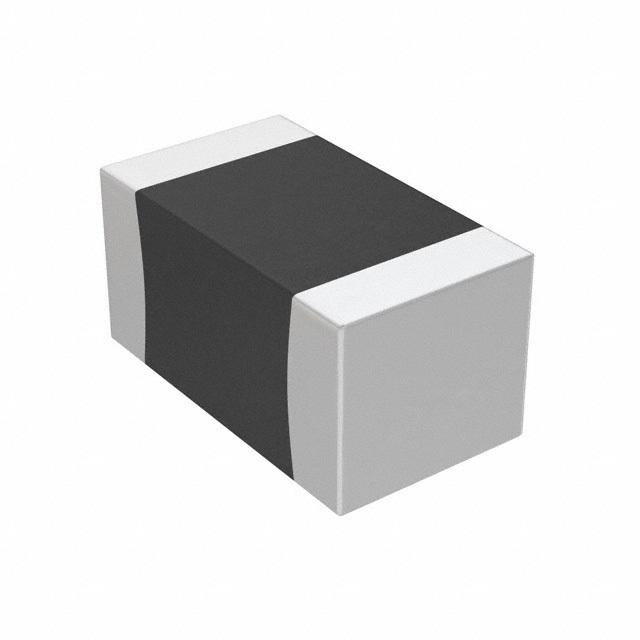

0603 0.0027 uF 50 V ±10 % 容差 X7R 表面贴装 陶瓷电容
MLCC-多层陶瓷器
得捷:
CAP CER 2700PF 50V X7R 0603
欧时:
Yageo Standard 系列 2.7nF 50V dc X7R电介质 表面安装器件 多层陶瓷电容器 MLCC CC0603KRX7R9BB272
立创商城:
2.7nF ±10% 50V
e络盟:
多层陶瓷电容器, 表面贴装, 2700 pF, 50 V, 0603 [1608 公制], ± 10%, X7R, CC系列
艾睿:
This CC0603KRX7R9BB272 multilayer ceramic capacitor from Yageo is non-polarized so it may be connected either to positive or to negative voltage. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 10%. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. Its capacitance value is 0.0027uF.
Chip1Stop:
Cap Ceramic 0.0027uF 50V X7R 10% SMD 0603 125ÂÂ℃ Paper T/R
Verical:
Cap Ceramic 0.0027uF 50V X7R 10% Pad SMD 0603 125C T/R
Newark:
# YAGEO PHYCOMP CC0603KRX7R9BB272 Multilayer Ceramic Capacitor, CC Series, 2700 pF, - 10%, X7R, 50 V, 0603 [1608 Metric]
额定电压DC 50.0 V
绝缘电阻 10 GΩ
电容 2700 pF
容差 ±10 %
无卤素状态 Halogen Free
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±10 %
额定电压 50 V
安装方式 Surface Mount
引脚数 2

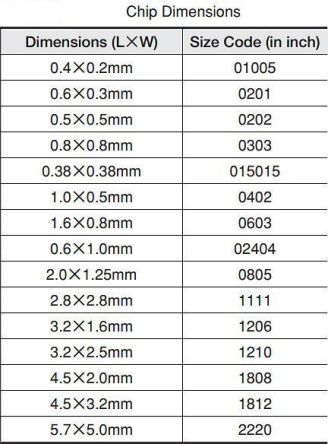

封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 X7R/-55℃~+125℃
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
温度系数 ±15 %
产品生命周期 Active

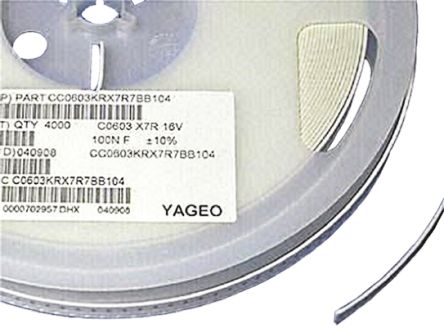

包装方式 Cut Tape CT
最小包装 4000
制造应用 工业, Industrial, 通用, 电源管理, 便携式器材, Consumer Electronics, Power Management, 消费电子产品, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC0603KRX7R9BB272 Yageo 国巨 | 当前型号 | 当前型号 |
MC0603B272K500CT Multicomp | 完全替代 | CC0603KRX7R9BB272和MC0603B272K500CT的区别 |
0603B272K500CT 台湾华科 | 类似代替 | CC0603KRX7R9BB272和0603B272K500CT的区别 |
C0603C272K5RAC7867 基美 | 类似代替 | CC0603KRX7R9BB272和C0603C272K5RAC7867的区别 |
