1线路至10线路时钟驱动器,具有三态输出 1-LINE TO 10-LINE CLOCK DRIVER WITH 3-STATE OUTPUTS
The CDC351 is a high-performance clock-driver circuit that distributes one input A to ten outputs Y with minimum skew for clock distribution. The output-enable OE\ input disables the outputs to a high-impedance state. The CDC351 operates at nominal 3.3-V VCC.
The propagation delays are adjusted at the factory using the P0 and P1 pins. The factory adjustments ensure that the part-to-part skew is minimized and is kept within a specified window. Pins P0 and P1 are not intended for customer use and should be connected to GND.
频率 100 MHz
电源电压DC 3.30 V
输出接口数 10
供电电流 25.0 mA
电路数 1
输出电流驱动 -1.00 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 24

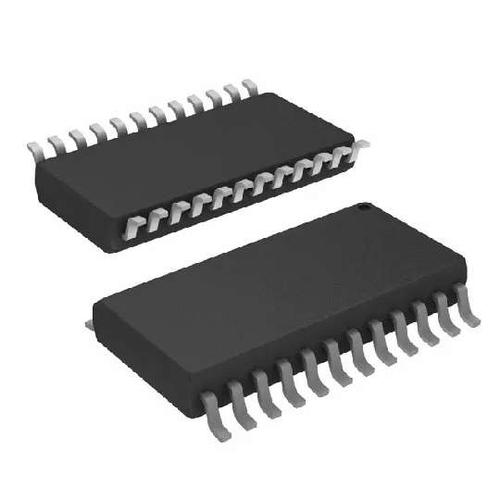

封装 SOIC-24
长度 15.4 mm
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CDC351IDW TI 德州仪器 | 当前型号 | 当前型号 |
CDC351IDWG4 德州仪器 | 完全替代 | CDC351IDW和CDC351IDWG4的区别 |
CDC351IDWR 德州仪器 | 类似代替 | CDC351IDW和CDC351IDWR的区别 |
CDC351IDWRG4 德州仪器 | 功能相似 | CDC351IDW和CDC351IDWRG4的区别 |
