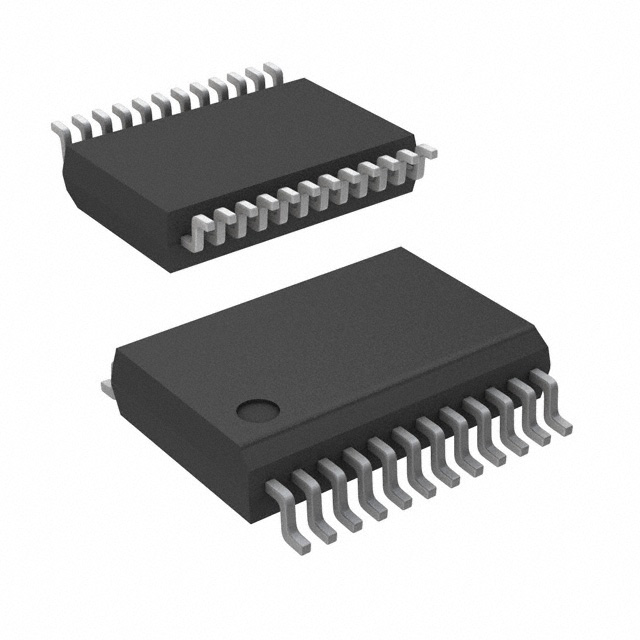

CDC2351QDB

1线路至10线路时钟驱动器，具有三态输出 1-LINE TO 10-LINE CLOCK DRIVER WITH 3-STATE OUTPUTS

The CDC2351 is a high-performance clock-driver circuit that distributes one input A to ten outputs Y with minimum skew for clock distribution. The output-enable OE\\\\ input disables the outputs to a high-impedance state. Each output has an internal series damping resistor to improve signal integrity at the load. The CDC2351 operates at nominal 3.3-V VCC.

The propagation delays are adjusted at the factory using the P0 and P1 pins. The factory adjustments ensure that the part-to-part skew is minimized and is kept within a specified window. Pins P0 and P1 are not intended for customer use and should be connected to GND.

The CDC2351 is characterized for operation from 0°C to 70°C. The CDC2351Q is characterized for operation over the full automotive temperature range of -40°C to 125°C.
