的enCoRe ™V低压微控制器 enCoRe™ V Low Voltage Microcontroller

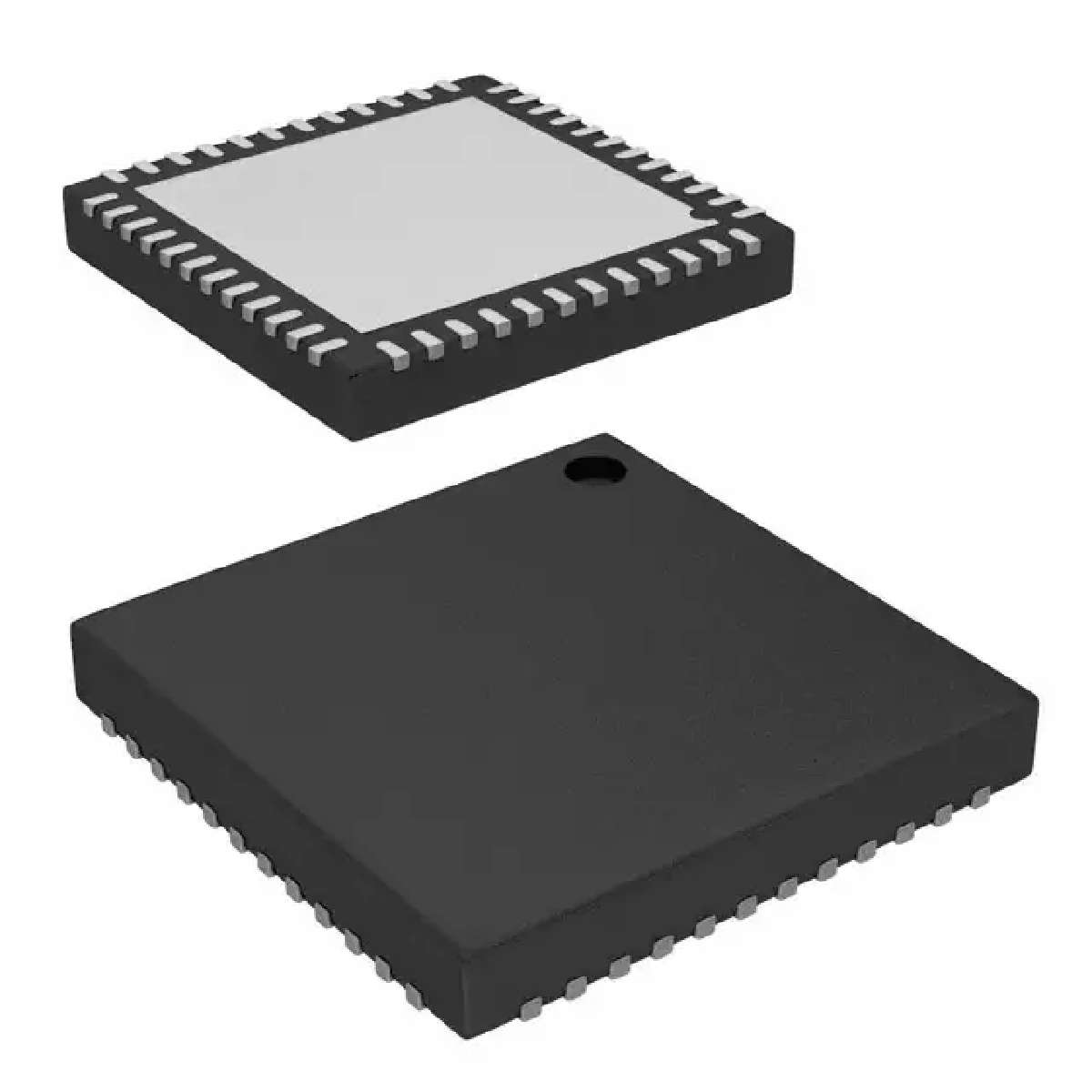

M8C series IC 8 位 24MHz 16KB（16K x 8） 闪存 48-QFN（7x7）
立创商城:
CY7C60455-48LTXC
贸泽:
8-bit Microcontrollers - MCU enCoRe Low Voltage 1.71-3.6volts
艾睿:
MCU 8-bit enCoRe V M8C RISC 16KB Flash 1.8V/2.5V/3.3V 48-Pin QFN EP
安富利:
The enCoRe V LV family of devices are designed to replace multiple traditional low voltage microcontroller system components with one, low cost single-chip programmable component. Communication peripherals I2C/SPI, a fast CPU, Flash program memory, SRAM data memory, and configurable IO are included in a range of convenient pinouts. The architecture for this device family, as illustrated enCoRe V LV - Block Diagram, is comprised of two main areas: the CPU core and the system resources. Depending on the enCoRe V LV package, up to 36 general purpose IO GPIO are also included. Enhancements over the Cypress’ legacy low voltage microcontrollers include faster CPU at lower voltage operation, lower current consumption, twice the RAM and Flash, hot-swapable IOs, I2C hardware address recognition, new very low current sleep mode, and new package optionsThe enCoRe V LV Core is a powerful engine that supports a rich instruction set. It encompasses SRAM for data storage, an interrupt controller, sleep and watchdog timers, and IMO internal main oscillator and ILO internal low speed oscillator. The CPU core, called the M8C, is a powerful processor with speeds up to 24 MHz. The M8C is a four-MIPS, 8-bit Harvard architecture microprocessor.System Resources provide additional capability, such as a configurable I2C slave/SPI master-slave communication interface and various system resets supported by the M8C.
罗切斯特:
MCU 8-bit enCoRe V M8C RISC 16KB Flash 1.8V/2.5V/3.3V 48-Pin QFN EP
