1线路至8线路时钟驱动器 1-LINE TO 8-LINE CLOCK DRIVER
The CDC340 is a high-performance clock-driver circuit that distributes one A input signal to eight Y outputs with minimum skew for clock distribution. Through the use of the control pins 1G and 2G, the outputs can be placed in a high state regardless of the A input.
The propagation delays are adjusted at the factory using the P0 and P1 pins. These pins are not intended for customer use and should be strapped to GND.
The CDC340 is characterized for operation from 0°C to 70°C.
得捷:
IC CLK BUFFER 1:8 80MHZ 20SOIC
立创商城:
CDC340DW
德州仪器TI:
1-to-8 TTL clock driver with output control pins for high state
贸泽:
Clock Drivers & Distribution 1-To-8 Clock Driver
艾睿:
Clock Fanout Buffer 8-OUT 20-Pin SOIC Tube
安富利:
Clock Fanout Buffer 8-OUT 20-Pin SOIC Tube
Chip1Stop:
Clock Fanout Buffer 8-OUT 20-Pin SOIC Tube
Verical:
Clock Fanout Buffer 8-OUT 1-IN 1:8 20-Pin SOIC Tube
Newark:
# TEXAS INSTRUMENTS CDC340DW Clock Driver, 80 MHz, 4.75V-5.25V supply, 8 Outputs, SOIC-20
频率 80 MHz
电源电压DC 5.00 V
输出接口数 8
供电电流 33.0 mA
电路数 1
耗散功率 1600 mW
输出电流驱动 -1.00 mA
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 1600 mW
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount

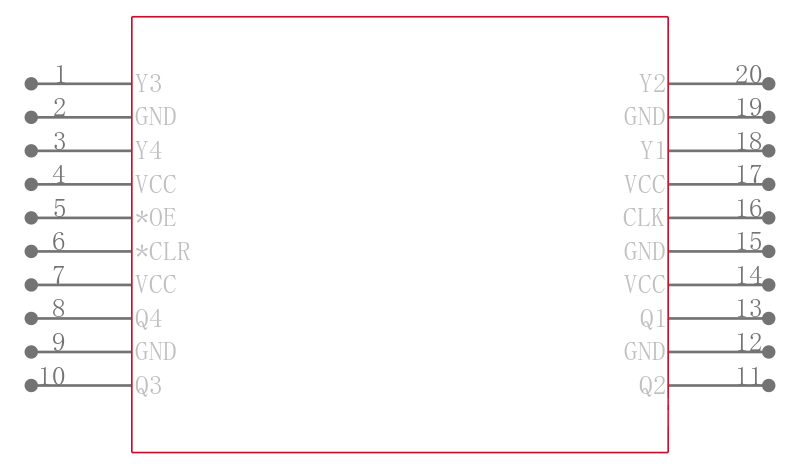

引脚数 20
封装 SOIC-20
长度 12.8 mm
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-20
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CDC340DW TI 德州仪器 | 当前型号 | 当前型号 |
CDC340DWR 德州仪器 | 完全替代 | CDC340DW和CDC340DWR的区别 |
CDC340DWRG4 德州仪器 | 完全替代 | CDC340DW和CDC340DWRG4的区别 |
