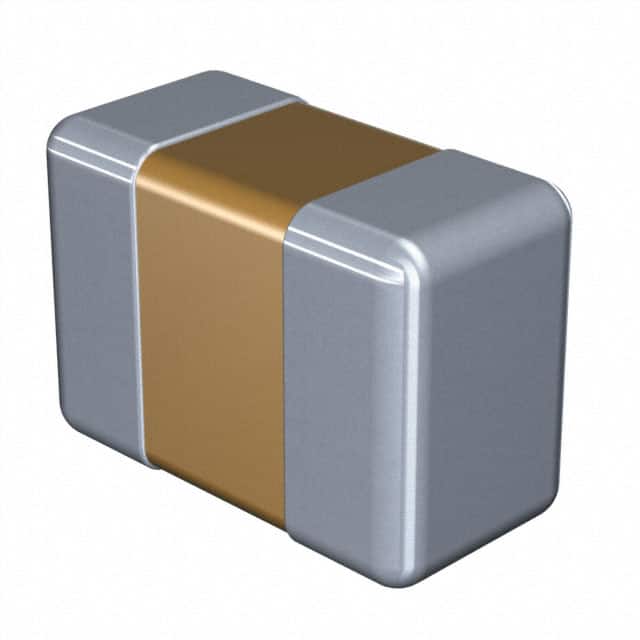

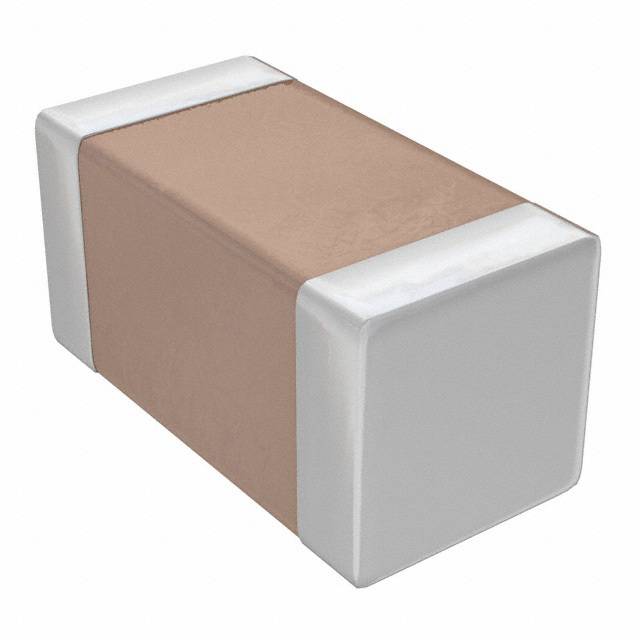

0402 6.8nF ±10% 50V X5R
±10% 50V 陶瓷器 X5R 0402（1005 公制）
得捷:
CAP CER 6800PF 50V X5R 0402
艾睿:
Get more with less with TDK&s;s C1005X5R1H682K050BA multilayer ceramic capacitor which uses multiple layers of ceramic and metal to act as dielectric and electrodes. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 10%. Its capacitance value is 0.0068uF. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep.
Verical:
Cap Ceramic 0.0068uF 50V X5R 10% Pad SMD 0402 85C Low ESR T/R
额定电压DC 50.0 V
电容 6800 PF
容差 ±10 %
电介质特性 X5R
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1.00 mm
宽度 500 µm
高度 0.5 mm
封装公制 1005
封装 0402
厚度 500 µm
材质 X5R/-55℃~+85℃
介质材料 Ceramic Multilayer
工作温度 -55℃ ~ 85℃
产品生命周期 Production Not Recommended for New Design
包装方式 Tape & Reel TR
最小包装 10000
制造应用 for Automotive use., Commercial Grade, 通用, Please refer to Part No.
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C1005X5R1H682K050BA TDK 东电化 | 当前型号 | 当前型号 |
UMK105BJ682KV-F 太诱 | 类似代替 | C1005X5R1H682K050BA和UMK105BJ682KV-F的区别 |
UMK105BJ682KVHF 太诱 | 功能相似 | C1005X5R1H682K050BA和UMK105BJ682KVHF的区别 |
CGA2B2X5R1H682K050BA 东电化 | 功能相似 | C1005X5R1H682K050BA和CGA2B2X5R1H682K050BA的区别 |
