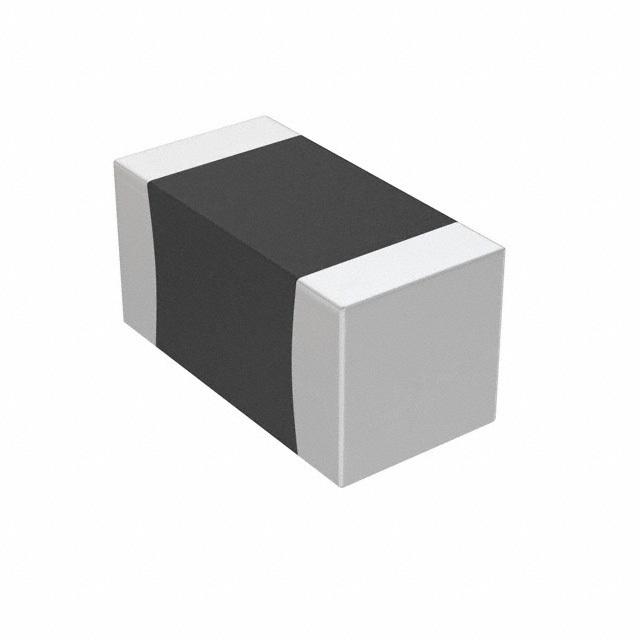

0402 1 uF 6.3 V -20 / +80 % 容差 Y5V 表面贴装 陶瓷 电容
MLCC-多层陶瓷器
得捷:
CAP CER 1UF 6.3V Y5V 0402
立创商城:
1uF -20%~+80% 6.3V
贸泽:
Multilayer Ceramic Capacitors MLCC - SMD/SMT 1.0uF 6.3V Y5V -20/+80%
e络盟:
The Yageo CC series capacitors are Multilayer Ceramic Chip Capacitors MLCC with Class 2, Y5V dielectric material used for general purpose applications. These capacitors consist of a rectangular block of ceramic dielectric materials that contains number of interleaved metal electrodes. This structure gives rise to a high capacitance per unit volume. The inner electrodes are connected to the two end terminations and covered with a layer of plated tin NiSn.
艾睿:
With alternating layers of ceramic acting as the dielectric and electrodes, this CC0402ZRY5V5BB105 multilayer ceramic capacitor from Yageo achieves a large capacitance in a small package. It can withstand a voltage of 6.3 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its capacitance value is 1uF. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep.
Verical:
Cap Ceramic 1uF 6.3V Y5V -20% to 80% Pad SMD 0402 85C T/R
Newark:
# YAGEO CC0402ZRY5V5BB105 SMD Multilayer Ceramic Capacitor, 0402 [1005 Metric], 1 µF, 6.3 V, +80%, -20%, Y5V, CC Series
Win Source:
CAP CER 1UF 6.3V Y5V 0402 / 1 µF -20%, +80% 6.3V Ceramic Capacitor Y5V F 0402 1005 Metric
额定电压DC 6.3 V
绝缘电阻 10 GΩ
电容 1 µF
容差 +80/-20%
无卤素状态 Halogen Free
电介质特性 Y5V
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 6.3 V
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
厚度 0.5 mm
材质 Y5V/-30℃~+85℃
介质材料 Ceramic
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 Power Management, Portable Devices, Industrial, 通用, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC0402ZRY5V5BB105 Yageo 国巨 | 当前型号 | 当前型号 |
CC0402ZRY5V6BB105 国巨 | 类似代替 | CC0402ZRY5V5BB105和CC0402ZRY5V6BB105的区别 |
NMC0402Y5V105Z6.3TRPF NIC | 类似代替 | CC0402ZRY5V5BB105和NMC0402Y5V105Z6.3TRPF的区别 |
C1005Y5V0J105Z 东电化 | 功能相似 | CC0402ZRY5V5BB105和C1005Y5V0J105Z的区别 |
