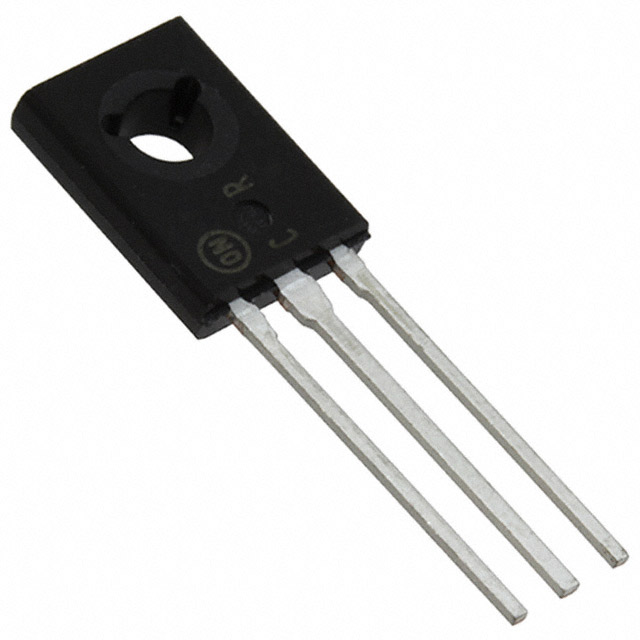

ON SEMICONDUCTOR C106M1G 晶闸管, 600 V, 0.2 mA, 2.55 A, 4 A, TO-225AA, 3 引脚
The is a 4A RMS PNPN sensitive gate Silicon Controlled Rectifier SCR designed for high volume consumer applications where reliability of operation is important.
- .
- Reverse blocking thyristor
- .
- Glassivated surface for reliability and uniformity
- .
- Power rated
- .
- Practical level triggering and holding characteristics
- .
- Flat, rugged, thermopad construction for low thermal resistance, high heat dissipation & durability
额定电压DC 600 V
额定电流 4.00 A
无卤素状态 Halogen Free
针脚数 3
保持电流 3 mA
保持电流Max 3 mA
工作温度Max 110 ℃
工作温度Min -40 ℃
工作结温 -40℃ ~ 110℃
安装方式 Through Hole
引脚数 3
封装 TO-126-3
长度 7.74 mm
宽度 2.66 mm
高度 11.04 mm
封装 TO-126-3
工作温度 -40℃ ~ 110℃
产品生命周期 Active
包装方式 Box
制造应用 Sensing & Instrumentation, Automation & Process Control, Lighting, Power Management, HVAC, Consumer Electronics, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C106M1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
C106MG 安森美 | 类似代替 | C106M1G和C106MG的区别 |
2N6509G 力特 | 功能相似 | C106M1G和2N6509G的区别 |
