0603 470pF ±5% 50V C0G
±5% 50V 陶瓷器 C0G,NP0 0603(1608 公制)
得捷:
CAP CER 470PF 50V C0G/NP0 0603
立创商城:
470pF ±5% 50V
艾睿:

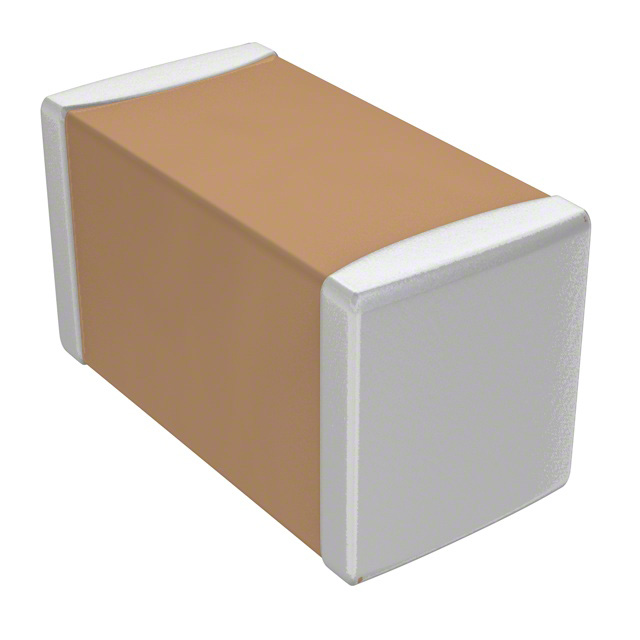

Do you need a capacitor with high stability and low losses? Then this CL10C471JB81PNL multilayer ceramic capacitor from Samsung Electro-Mechanics is the solution you are looking for! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. Its capacitance value is 470pF. It has a tolerance of 5%.
Verical:
Cap Ceramic 470pF 50V C0G 5% Pad SMD 0603 125C Automotive T/R
儒卓力:
**KC 470pF 0603 5% 50V NP0 AECQ **
额定电压DC 50 V
电容 470 pF
容差 ±5 %
产品系列 Automotive
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 15000
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL10C471JB81PNL Samsung 三星 | 当前型号 | 当前型号 |
CL10C471JB81PNC 三星 | 完全替代 | CL10C471JB81PNL和CL10C471JB81PNC的区别 |
CGA3E2C0G1H471J080AA 东电化 | 类似代替 | CL10C471JB81PNL和CGA3E2C0G1H471J080AA的区别 |
C0603C471J5GACAUTO7411 基美 | 类似代替 | CL10C471JB81PNL和C0603C471J5GACAUTO7411的区别 |
