C1005X7R1H331K

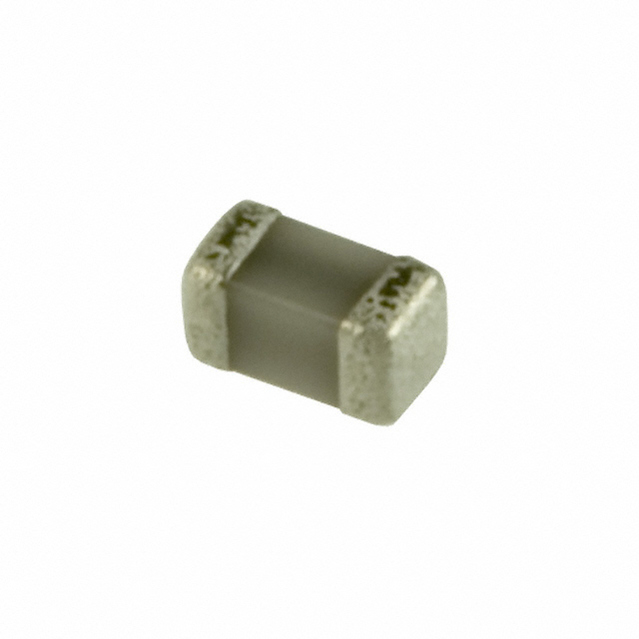

C1005X7R1H331K图片1
C1005X7R1H331K图片2
C1005X7R1H331K图片3
C1005X7R1H331K图片4
C1005X7R1H331K图片5
C1005X7R1H331K概述

Cap Ceramic 330pF 50V X7R 10% SMD 0402 125℃ T/R

Features

• High capacitance has been achieved through precision

technologies that enable the use of multiple thinner

ceramic dielectric layers.

• A monolithic structure ensures superior mechanical

strength and reliability.

• High-accuracy automatic mounting is facilitated through

the maintenance of very precise dimensional tolerances.

• Composed of only ceramics and metals, these

capacitors provide extremely dependable performance,

exhibiting virtually no degradation even when subjected to

temperature extremes.

• Low stray capacitance ensures high conformity with

nominal values, thereby simplifying the circuit design

process.

• Low residual inductance assures superior frequency

characteristics.

• Because electrostatic capacity has been obtained up to

the electrolytic capacitor range, these capacitors offer

long service life and are optimally suited for power supply

designs that require high levels of reliability.

• Owing to their low ESR and excellent frequency

characteristics, these products are optimally suited for

high frequency and high-density type power supplies

Applications

• Electronics equipment

• Mobile communications equipment

• Office automation equipment

• Automotive electronics

• Test and measurement equipment

• Hybrid ICs, etc.

• Decoupling

• Smoothing

• Charge pump

C1005X7R1H331K中文资料参数规格
技术参数

额定电压DC 50.0 V

电容 330 pF

容差 ±10 %

电介质特性 X7R

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 1005

封装 0402

外形尺寸

长度 1.00 mm

宽度 500 µm

高度 0.5 mm

封装公制 1005

封装 0402

物理参数

介质材料 Ceramic Multilayer

其他

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8532240020

数据手册

在线购买C1005X7R1H331K
型号: C1005X7R1H331K
制造商: TDK 东电化
描述:Cap Ceramic 330pF 50V X7R 10% SMD 0402 125℃ T/R
