C8051F3xx 微控制器,Silicon Labs### 8051 微控制器,Silicon Labs
C8051F3xx ,
得捷:
IC MCU 8BIT 64KB FLASH 48TQFP
欧时:
Silicon Labs C8051F 系列 MCU 8 bit 8051 C8051F384-GQ, 48MHz, 64 kB ROM 闪存, 4.352 kB RAM, 1xUSB, TQFP-48
立创商城:
51系列 192MHz 闪存:64K@x8bit
e络盟:
8位 MCU微控制单元, C8051 Family C8051F38x Series Microcontrollers, 48 MHz, 64 KB, 4.25 KB, 48 引脚, TQFP
艾睿:
With the C8051F384-GQ microcontroller by Silicon Laboratories, many functions and tasks can be automated to a developer&s;s desired specifications. This microcontroller has an operating temperature range of -40 °C to 85 °C. It has a maximum clock speed of 48 MHz. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 1.8 V, while its maximum is 3.6 V. Its ADC resolution is 10. Its flash program memory is 64KB. This device is based on the 8051 core architecture. This is a 8 bit processor.
安富利:
MCU 8-bit C8051F38x 8051 CISC 64KB Flash 2.5V/3.3V 48-Pin TQFP
TME:
Microcontroller 8051; SRAM:4352B; TQFP48; -40÷85°C; 2.7÷5.25V
Verical:
MCU 8-bit C8051F38x 8051 CISC 64KB Flash 2.5V/3.3V 48-Pin TQFP
DeviceMart:
IC MCU USB 64K FLASH 48TQFP
Win Source:
IC MCU 8BIT 64KB FLASH 48QFP
频率 48 MHz
通道数 5
针脚数 48
RAM大小 4.25 KB
FLASH内存容量 64000 B
模数转换数ADC 1
输入/输出数 40 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.25 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 48

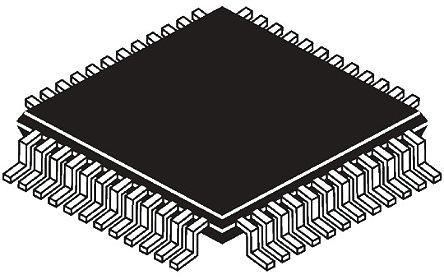

封装 TQFP-48
长度 7 mm
宽度 7 mm
高度 1.05 mm
封装 TQFP-48
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C8051F384-GQ Silicon Labs 芯科 | 当前型号 | 当前型号 |
C8051F384-GQR 芯科 | 类似代替 | C8051F384-GQ和C8051F384-GQR的区别 |
