八路总线收发器三态,非反相 Octal-Bus Transceiver Three-State, Non-Inverting
The AC245 and ACT245 are octal-bus transceivers that utilize Advanced CMOS Logic technology. They are non-inverting three-state bidirectional transceiver-buffers intended for two-way transmission from "A" bus to "B" bus or "B" bus to "A". The logic level present on the direction input DIR determines the data direction. When the output enable input OE\\\\ is HIGH, the outputs are in the high-impedance state.
得捷:
IC TXRX NON-INVERT 5.5V 20SSOP
立创商城:
CD74ACT245SM96
德州仪器TI:
Octal Non-Inverting Bus Transceivers with 3-State Outputs
艾睿:
Bus XCVR Single 8-CH 3-ST 20-Pin SSOP T/R
安富利:
Bus XCVR Single 8-CH 3-ST 20-Pin SSOP T/R
Chip1Stop:
Bus XCVR Single 8-CH 3-ST 20-Pin SSOP T/R
Verical:
Bus XCVR Single 8-CH 3-ST 20-Pin SSOP T/R
电路数 8
通道数 8
位数 8
输出电流驱动 -1.00 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

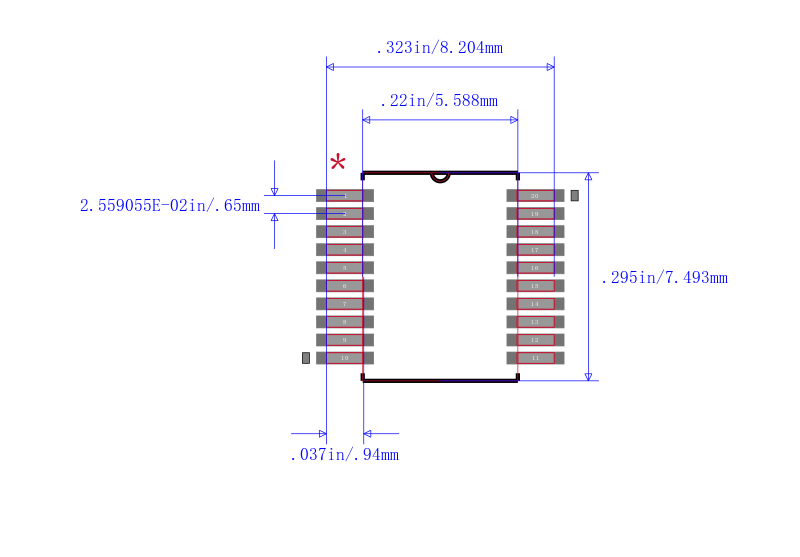

封装 SSOP-20
长度 7.2 mm
宽度 5.3 mm
高度 1.95 mm
封装 SSOP-20
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD74ACT245SM96 TI 德州仪器 | 当前型号 | 当前型号 |
SN74ACT245DBLE 德州仪器 | 完全替代 | CD74ACT245SM96和SN74ACT245DBLE的区别 |
SN74ACT245DBR 德州仪器 | 类似代替 | CD74ACT245SM96和SN74ACT245DBR的区别 |
CD74ACT245SM96G4 德州仪器 | 类似代替 | CD74ACT245SM96和CD74ACT245SM96G4的区别 |
