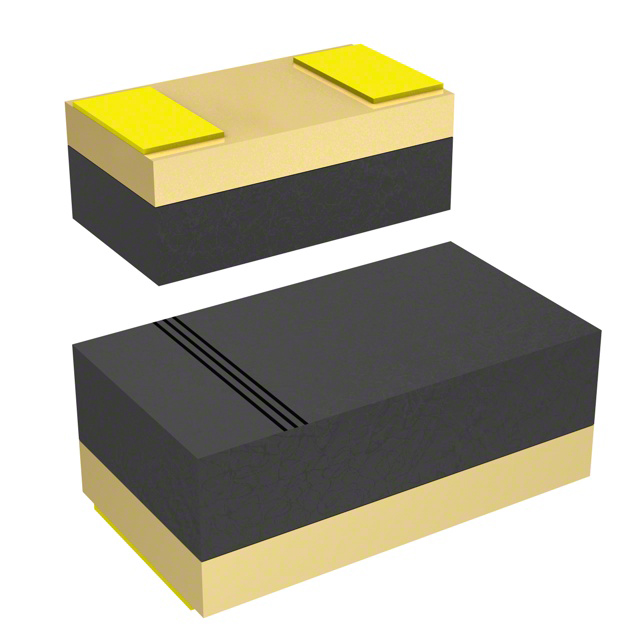

CD0603 / 1005 -Z表面贴装齐纳二极管系列 CD0603/1005-Z Surface Mount Zener Diode Series
This zener diode from Bourns will allow you to run it in the reverse direction. Its test current is 5 mA. Its maximum leakage current is 10 μA. Its maximum power dissipation is 150 mW. It is made in a single configuration. This zener device has a nominal voltage of 3.9 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -55 °C and a maximum of 125 °C.
容差 ±5 %
耗散功率 150 mW
测试电流 5 mA
稳压值 3.9 V
额定功率Max 150 mW
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.8 mm
宽度 1 mm
高度 0.85 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 125℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD0603-Z3V9 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
CD0603-Z5V1 伯恩斯 | 类似代替 | CD0603-Z3V9和CD0603-Z5V1的区别 |
CD0603-Z3V3 伯恩斯 | 类似代替 | CD0603-Z3V9和CD0603-Z3V3的区别 |
CD0603-Z5V6 伯恩斯 | 类似代替 | CD0603-Z3V9和CD0603-Z5V6的区别 |
