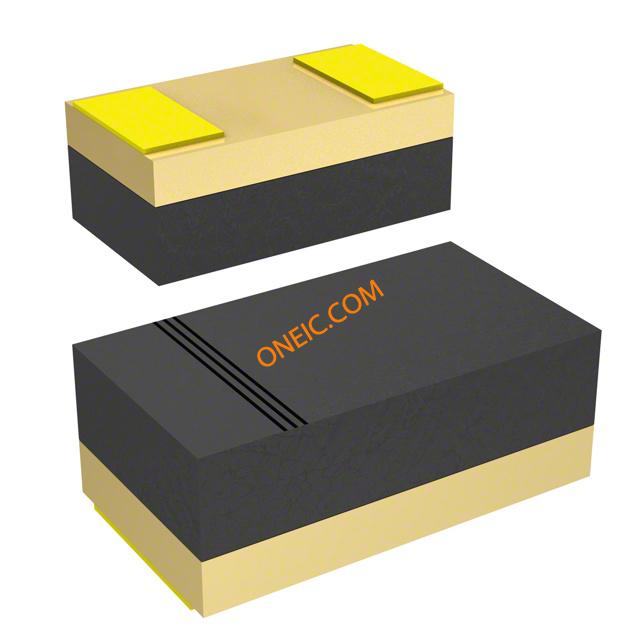

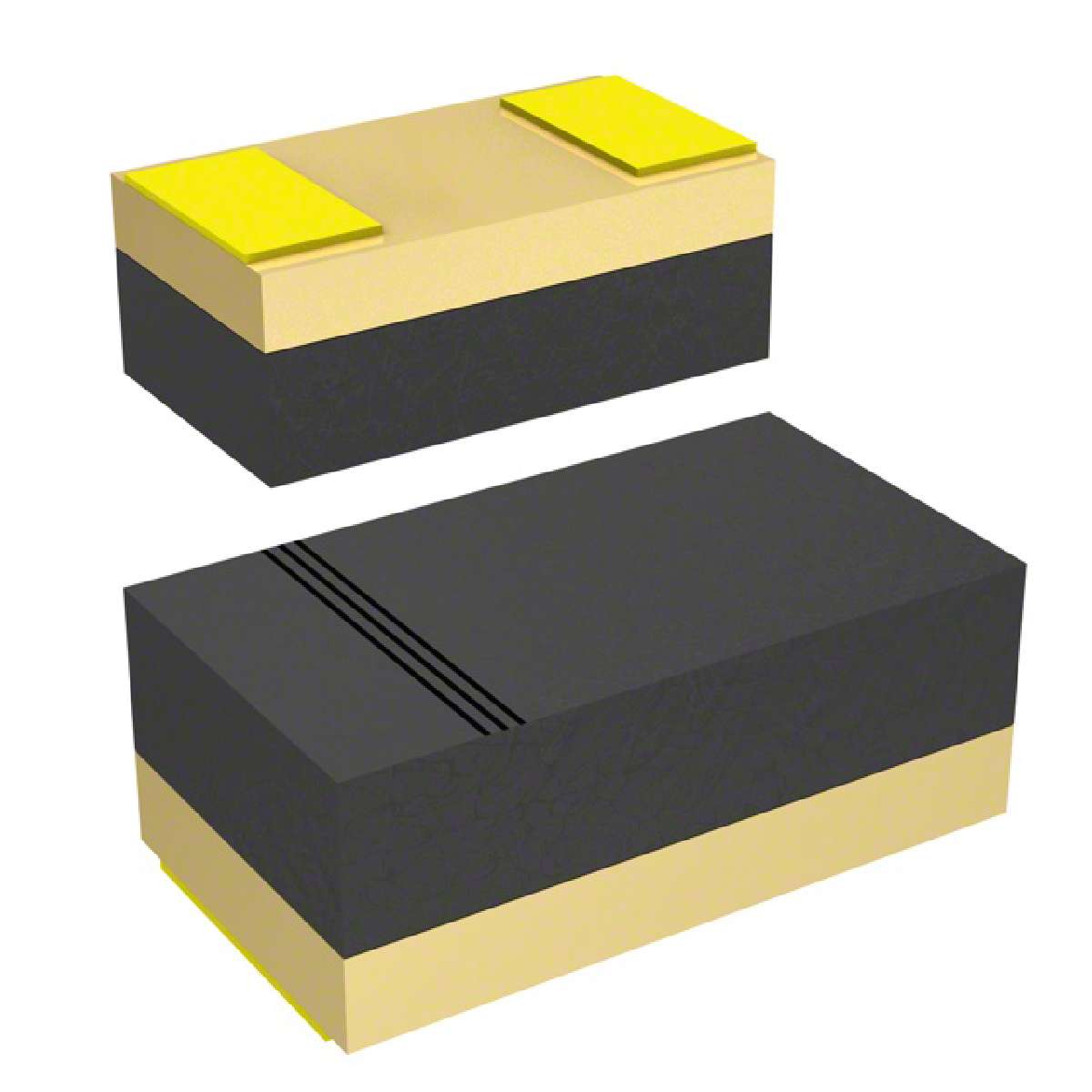

BOURNS CD0603-S0180R 二极管 小信号, AEC-Q101, 单, 90 V, 100 mA, 1 V, 4 ns, 1 A
The is a small-signal high-speed Schottky Barrier Diode for switching digital signal applications. This device is designed in compact chip package which offer PCB real estate savings and are considerably smaller than competitive parts. It has lead free with Cu/Ni/Au plated terminations and compatible with lead free manufacturing processes, conforming to many industry and government regulations on lead free components. This Chip Diode conform to JEDEC standards, easy to handle on standard pick and place equipment and their flat configuration makes roll away much more difficult.
针脚数 2
正向电压 1V @100mA
反向恢复时间 4 ns
正向电流 100 mA
最大正向浪涌电流(Ifsm) 1 A
正向电压Max 1 V
正向电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.8 mm
宽度 1 mm
高度 0.85 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 125℃
产品生命周期 Obsolete
包装方式 Cut Tape CT
制造应用 成像, 消费电子产品, 视频和目视, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8541100070
