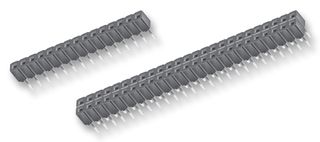

CES-103-01-T-S

板至板连接, 2.54 mm, 3 触点, 插座, CES Series, 通孔安装, 1 排

3 位置 插座 0.100"（2.54mm） 通孔 锡

欧时:
.100" Closed Entry Low Profile Socket S

得捷:
CONN RCPT 3POS 0.1 TIN PCB

立创商城:
2.54mm

e络盟:
板至板连接, 2.54 mm, 3 触点, 插座, CES Series, 通孔安装, 1 排

艾睿:

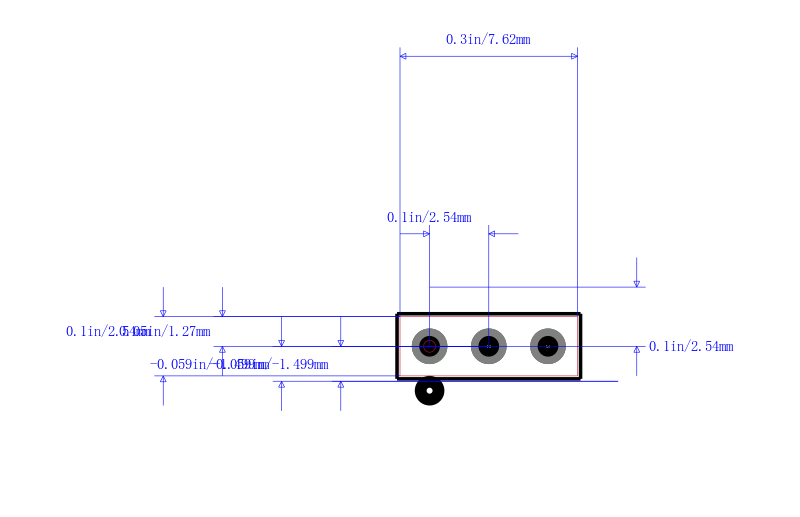

As an added safety precaution, the socket strip CES-103-01-T-S header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This SKT connector&s;s 3 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 400 VAC. Its pitch is 2.54 mm. It has a socket type gender. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 5.5 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 105 °C. This product is 7.62 mm long, 5.08 mm tall and 3.05 mm deep. CES-103-01-T-S is housed in black polyester. It uses the solder termination method.

安富利:
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

Newark:
# SAMTEC  CES-103-01-T-S  Board-To-Board Connector, 2.54 mm, 3 Contacts, Receptacle, CES Series, Through Hole, 1 Rows
