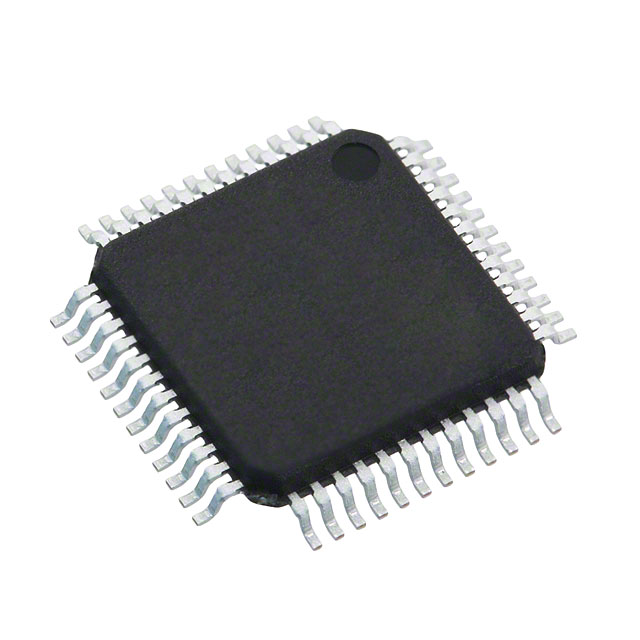

C8051F230-GQ图片1

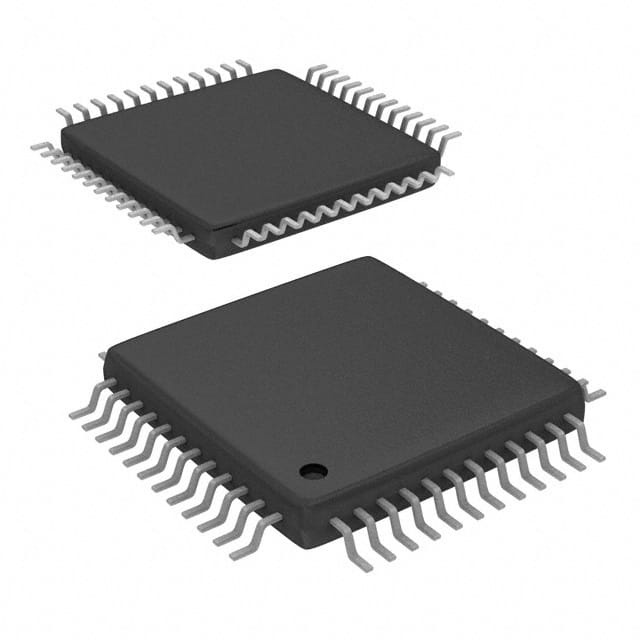

C8051F230-GQ图片2
C8051F230-GQ图片3
C8051F230-GQ图片4
C8051F230-GQ图片5
C8051F230-GQ图片6
C8051F230-GQ图片7
C8051F230-GQ图片8
C8051F230-GQ图片9
C8051F230-GQ图片10
C8051F230-GQ图片11
C8051F230-GQ概述

SILICON LABS  C8051F230-GQ  微控制器, 8位, 混合信号, C8051F2xx, 25 MHz, 8 KB, 256 Byte, 48 引脚, TQFP

The is a highly integrated mixed-signal 8-bit ISP Flash Microcontroller featuring a powerful 8051 core with 25MHz performance. The MCU offers 8kB flash, 0.25kB RAM along with SPI, UART communication interfaces and 3 x 16-bit Timers. On-chip analog features include an ADC and 2 comparators. With on-chip power-on reset, VDD monitor, watchdog timer, a ±20% internal oscillator. The flash memory can be reprogrammed even in-circuit, providing nonvolatile data storage and also allowing field upgrades of the 8051 firmware. On-board JTAG debug support allows non-intrusive uses no on-chip resources, full speed, in-circuit debug using the production MCU installed in the final application. This debug system supports inspection and modification of memory and registers, setting breakpoints, watchpoints, single stepping, run and halt commands. All analog and digital peripherals are fully functional when emulating using JTAG.

.
8051 mC Core
.
Pipelined instruction architecture - Executes 70% of instructions in 1 or 2 system clocks
.
Up to 25MIPS throughput with 25MHz clock
.
Expanded interrupt handler
.
Two comparators
.
4byte Wide port I/O - All are 5V tolerant
.
Hardware UART and SPI bus
.
3 General purpose 16-bit counter/timers
.
Dedicated watch-dog timer
.
Bi-directional reset
.
System clock - Internal programmable oscillator, external crystal, external RC or external clock
.
Multiple power saving sleep and shutdown modes
.
On-chip debug circuitry facilitates full speed, non-intrusive in-system debug
.
Provides breakpoints, single-stepping, watchpoints, stack monitor
.
Inspect/Modify memory and registers
.
Superior performance to emulation systems using ICE-chips, target pods and sockets
C8051F230-GQ中文资料参数规格
技术参数

频率 25 MHz

电源电压DC 3.30 V, 3.60 V max

针脚数 48

时钟频率 25 MHz

RAM大小 256 b

位数 8

耗散功率 1000 mW

FLASH内存容量 8 KB

I/O引脚数 32

存取时间 25.0 µs

内核架构 8051

内存容量 8000 B

输入/输出数 32

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 1000 mW

电源电压 2.7V ~ 3.6V

电源电压Max 3.6 V

电源电压Min 2.7 V

封装参数

安装方式 Surface Mount

引脚数 48

封装 TQFP-48

外形尺寸

长度 7 mm

宽度 7 mm

高度 1 mm

封装 TQFP-48

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Not Recommended

包装方式 Tray

制造应用 Communications & Networking, 电源管理, 通信与网络, Power Management, Motor Drive & Control, 电机驱动与控制, 消费电子产品, Consumer Electronics

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free
