0603 270pF ±5% 50V -CH
270pF ±5% 50V Ceramic Capacitor CH 0603 1608 Metric
得捷:
CAP CER 270PF 50V CH 0603
艾睿:

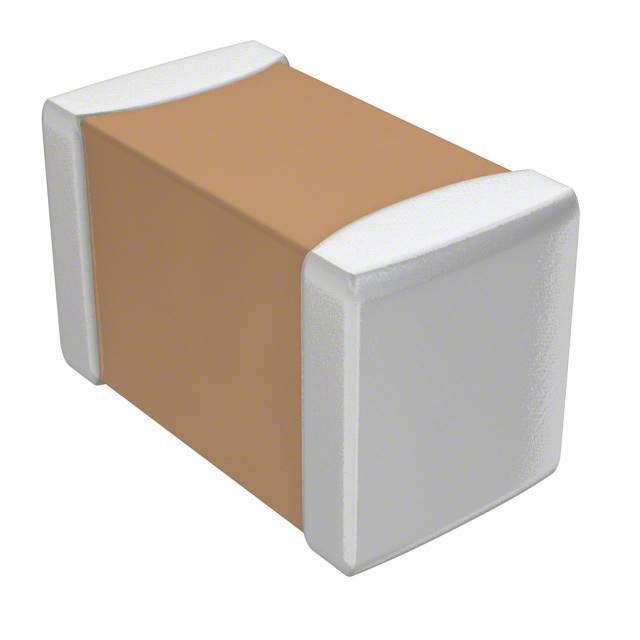

Do you need multiple capacitors for different uses in your electronics project? Look no further, this C1608CH1H271J080AA multilayer ceramic capacitor from TDK has a multitude of uses for various applications! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its capacitance value is 270pF. It has a tolerance of 5%. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep.
安富利:
Cap Ceramic 270pF 50V CH 5% SMD 0603 85°C Punched Paper T/R
Verical:
Cap Ceramic 270pF 50V CH 5% Pad SMD 0603 85C Low ESR T/R
额定电压DC 50.0 V
电容 270 pF
容差 ±5 %
电介质特性 CH
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.60 mm
宽度 800 µm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 800 µm
材质 -CH/-55℃~+125℃
介质材料 Ceramic Multilayer
工作温度 -25℃ ~ 85℃
产品生命周期 Production Not Recommended for New Design
包装方式 Tape & Reel TR
最小包装 4000
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
