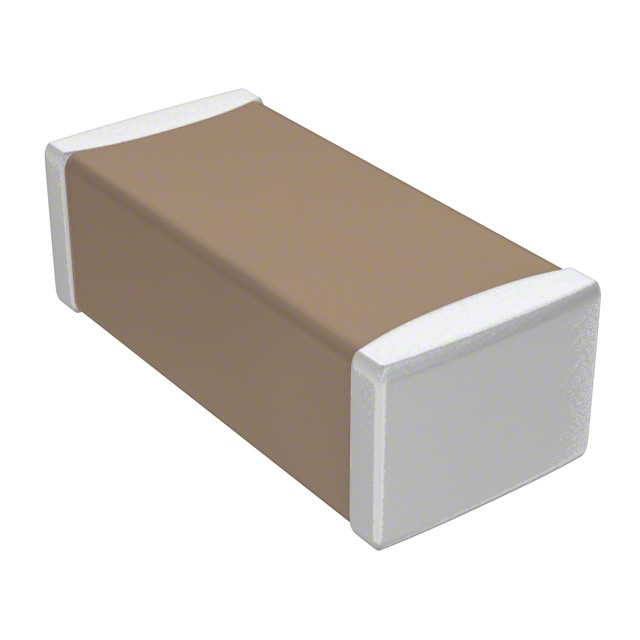

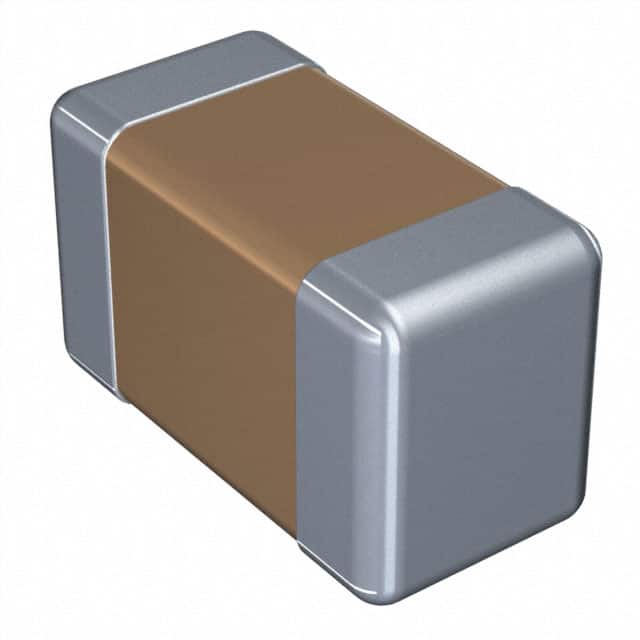

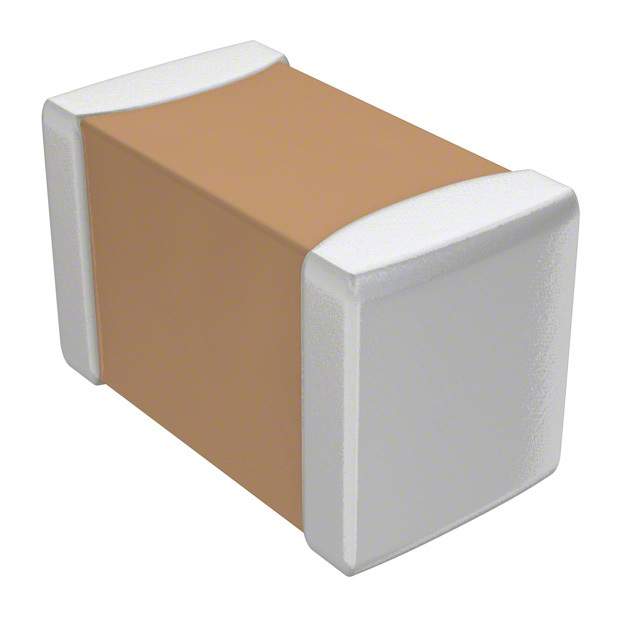

0603 33pF ±5% 100V C0G
33pF ±5% 100V Ceramic Capacitor C0G, NP0 0603 1608 Metric
得捷:
CAP CER 33PF 100V C0G 0603
立创商城:
33pF ±5% 100V
艾睿:
Use its standard classification system to find out what this C1608C0G2A330J080AA multilayer ceramic capacitor from TDK can do for you! It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its capacitance value is 33pF. It has a tolerance of 5%. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep.
Verical:
Cap Ceramic 33pF 100V C0G 5% Pad SMD 0603 125C T/R
额定电压DC 100 V
电容 33 pF
容差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount

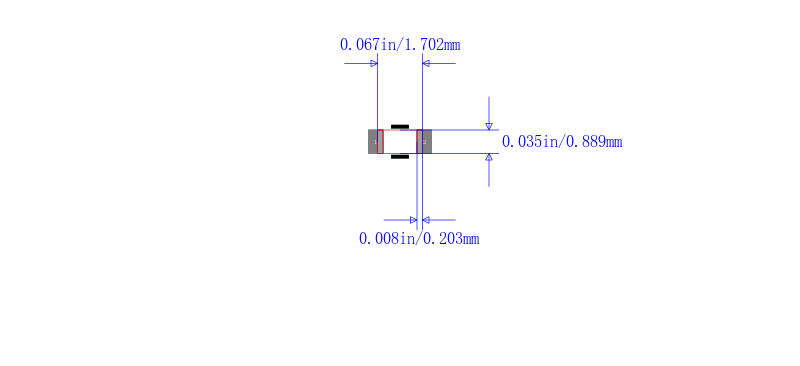

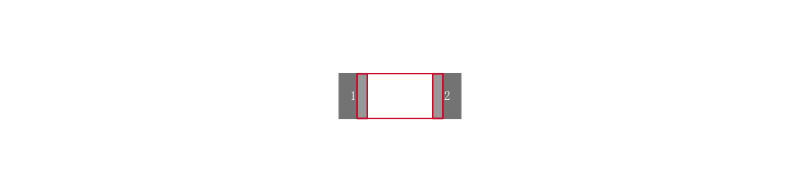

封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 Please refer to Part No., for Automotive use., Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C1608C0G2A330J080AA TDK 东电化 | 当前型号 | 当前型号 |
CGA3E2C0G2A330J080AA 东电化 | 完全替代 | C1608C0G2A330J080AA和CGA3E2C0G2A330J080AA的区别 |
CC0603JRNPO0BN330 国巨 | 类似代替 | C1608C0G2A330J080AA和CC0603JRNPO0BN330的区别 |
C1608NP02A330J080AA 东电化 | 类似代替 | C1608C0G2A330J080AA和C1608NP02A330J080AA的区别 |
