C8051F313-GM

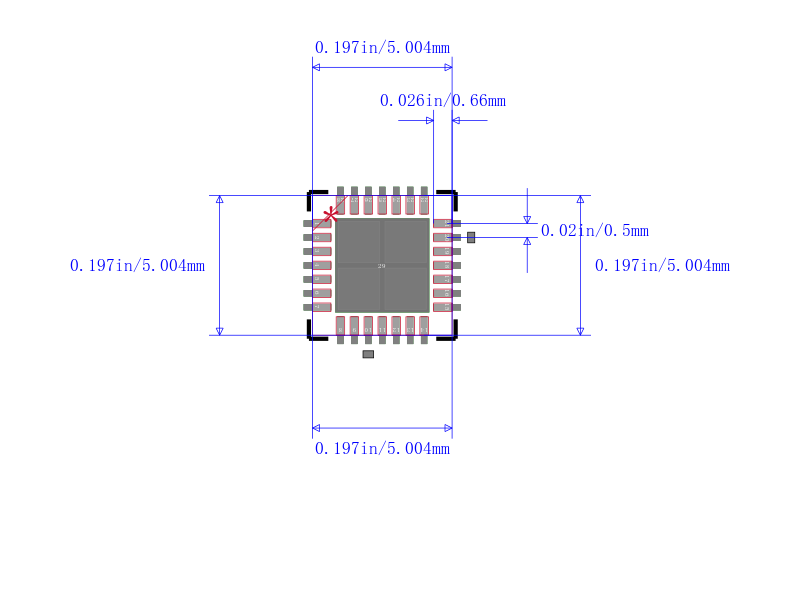

SILICON LABS C8051F313-GM 8Bit Microcontroller, C8051F3xx, 25MHz, 8KB, 1.25KB, 28Pins, MLP

C8051F31x devices are fully integrated mixed-signal System-on-a-Chip MCUs. Highlighted features are listed below. Refer to Table 1.1for specific product feature selection.

• High-speed pipelined 8051-compatible microcontroller core up to 25 MIPS

• In-system, full-speed, non-intrusive debug interface on-chip

• True 10-bit 200 ksps 25-channel single-ended/differential ADC with analog multiplexer C8051F310/1/2/3/6

• Precision programmable 25 MHz internal oscillator

• 16 kB C8051F310/1/6/7 or 8 kB C8051F312/3/4/5 of on-chip Flash memory

• 1280 bytes of on-chip RAM

• SMBus/I2C, Enhanced UART, and Enhanced SPI serial interfaces implemented in hardware

• Four general-purpose 16-bit timers

• Programmable Counter/Timer Array PCA with five capture/compare modules and Watchdog Timer function

• On-chip Power-On Reset, VDDMonitor, and Temperature Sensor

• On-chip Voltage Comparators

• 29/25/21 Port I/O 5 V tolerant
