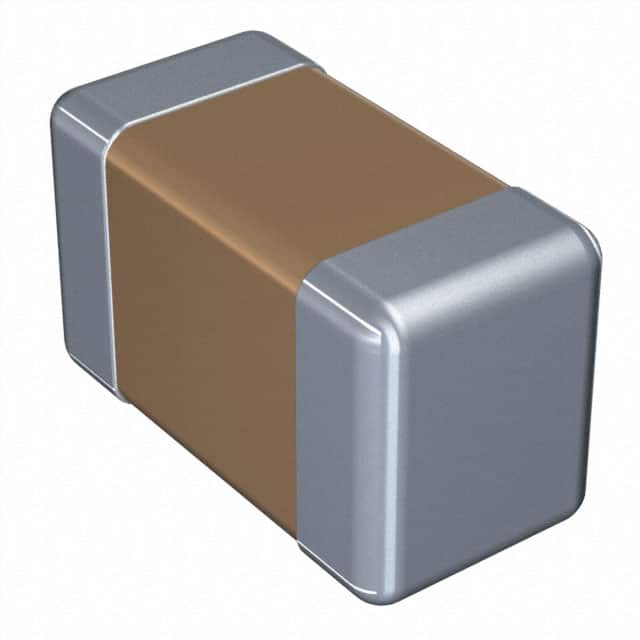

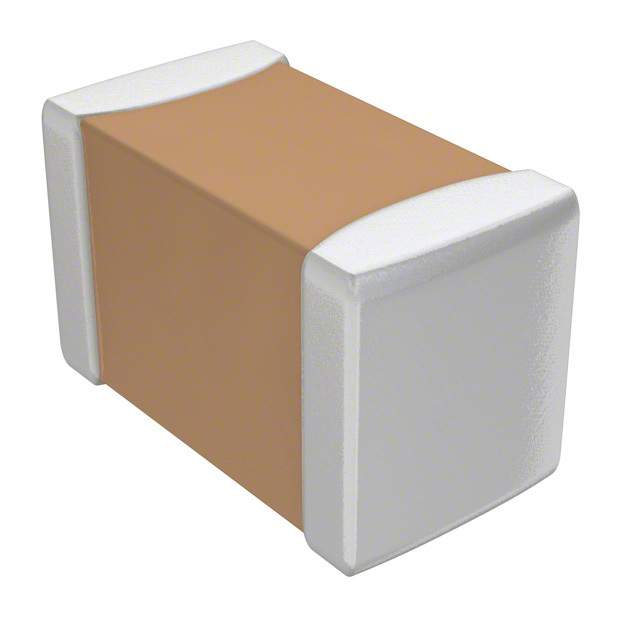

C 系列 0603 100 V 100 pF ±5% 容差 多层陶瓷电容
100pF ±5% 100V Ceramic Capacitor CH 0603 1608 Metric
得捷:
CAP CER 100PF 100V CH 0603
立创商城:
100pF ±5% 100V
贸泽:
Multilayer Ceramic Capacitors MLCC - SMD/SMT 0603 100pF 100volts CH 5%
艾睿:
You can use multiple capacitors of different parameters choosing this C1608CH2A101J080AA multilayer ceramic capacitor from TDK! It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its capacitance value is 100pF. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. It has a tolerance of 5%.
Verical:
Cap Ceramic 100pF 100V CH 5% Pad SMD 0603 85C T/R
额定电压DC 100 V
绝缘电阻 10 GΩ
电容 100 pF
容差 ±5 %
工作温度Max 85 ℃
工作温度Min 25 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 1608

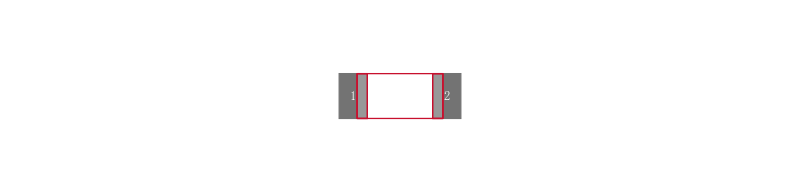

封装 0603

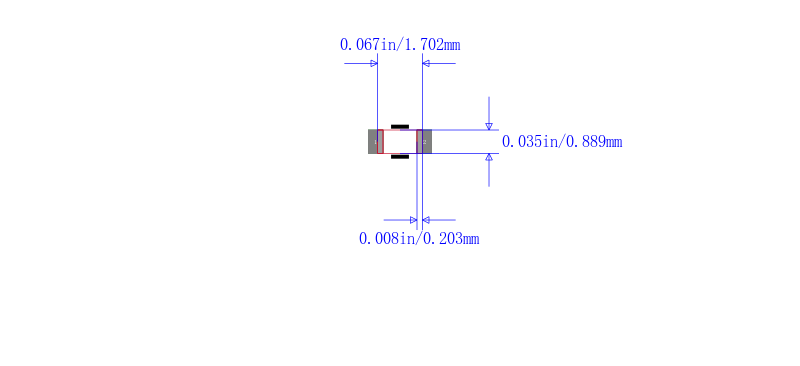

长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 -CH/-55℃~+125℃
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 Commercial Grade, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C1608CH2A101J080AA TDK 东电化 | 当前型号 | 当前型号 |
C1608CH1H101J080AA 东电化 | 功能相似 | C1608CH2A101J080AA和C1608CH1H101J080AA的区别 |
C1608CH2E101J080AA 东电化 | 功能相似 | C1608CH2A101J080AA和C1608CH2E101J080AA的区别 |
