0603 8pF ±0.5pF 100V C0G
8pF ±0.5pF 100V Ceramic Capacitor C0G, NP0 0603 1608 Metric
得捷:
CAP CER 8PF 100V C0G 0603
立创商城:
8pF ±0.5pF 100V
艾睿:

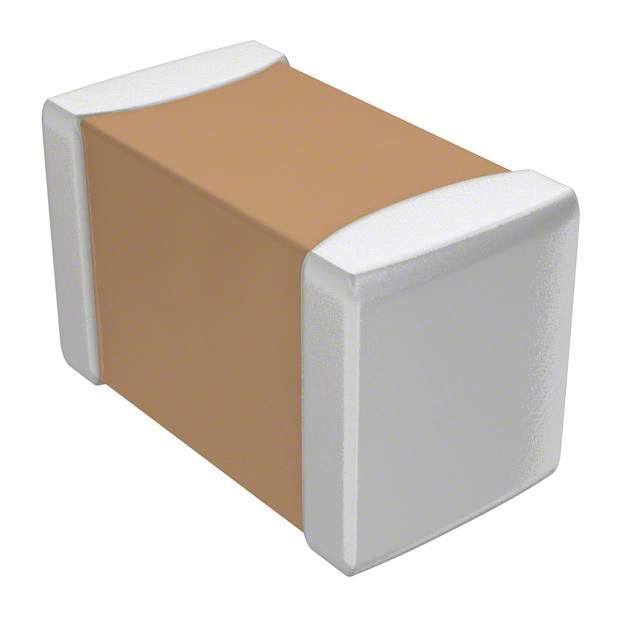

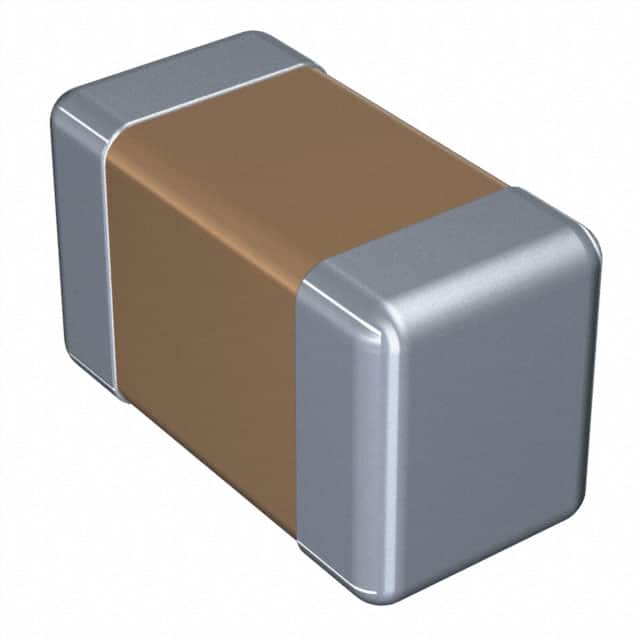

With alternating layers of ceramic acting as the dielectric and electrodes, this C1608C0G2A080D080AA multilayer ceramic capacitor from TDK achieves a large capacitance in a small package. It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its capacitance value is 8pF. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep.
Chip1Stop:
Cap Ceramic 8pF 100V C0G 0.5pF Pad SMD 0603 125C T/R
Verical:
Cap Ceramic 8pF 100V C0G 0.5pF Pad SMD 0603 125C T/R
额定电压DC 100 V
电容 8 pF
容差 ±0.5 pF
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用, for Automotive use., Please refer to Part No., Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C1608C0G2A080D080AA TDK 东电化 | 当前型号 | 当前型号 |
C1608NP02A080D080AA 东电化 | 完全替代 | C1608C0G2A080D080AA和C1608NP02A080D080AA的区别 |
CGA3E2C0G2A080D080AA 东电化 | 类似代替 | C1608C0G2A080D080AA和CGA3E2C0G2A080D080AA的区别 |
GRM1885C2A8R0DZ01D 村田 | 类似代替 | C1608C0G2A080D080AA和GRM1885C2A8R0DZ01D的区别 |
